SCXI-1334

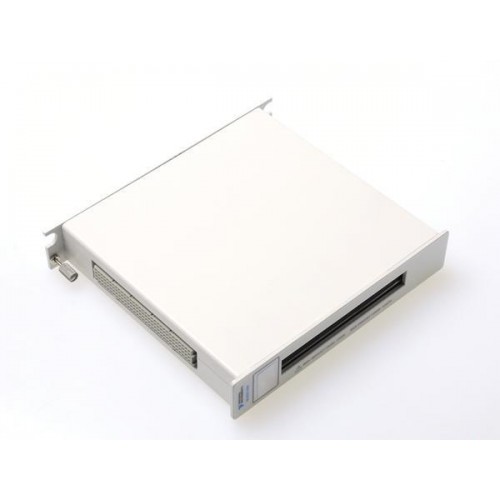

National Instruments SCXI-1334 Terminal Block
Features

• Accepts Matrix Expansion Plugs to Expand Rows Via Column Connection and Matrix Expansion Cables
• Front-Mounting Terminal Block
• Configures the SCXI-1129 as 4x64 (2-wire) Matrix

The National Instruments SCXI-1334 is a terminal block for the SCXI-1129. This block configures the SCXI-1129 switch module as a 4 X 64 matrix. The SCXI-1334 contains terminals for scanner advanced output and external input trigger signals. This block also contains 2 128-pin DIN connectors for connecting columns between modules and 10-pin headers for connecting rows between modules using expansion cables.
