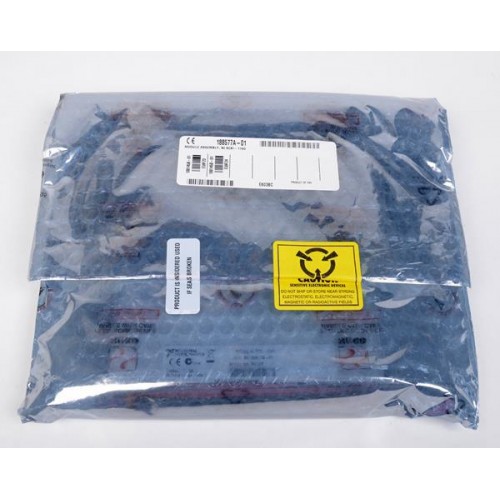

SCXI-1193

National Instruments SCXI-1193 High-Frequency Multiplexer/Matrix Modules
Features

• 500 MHz Bandwidth
• 50Ω Characteristic Impedance
• 10W RF Carry Power
• 150V, CAT I Switching
• Fully Software Configurable
• Unterminated Multiplexer

The National Instruments SCXI-1193 is a high-density 50Ω RF relay module. You can programmatically configure it as an unterminated multiplexer, an externally terminated multiplexer, or a dimensionally flexible sparse matrix. Each configuration handles signal frequencies from DC to beyond 500 MHz. This single-slot switch module uses high-density push-on MCX connectors for discrete yet manageable cabling.
