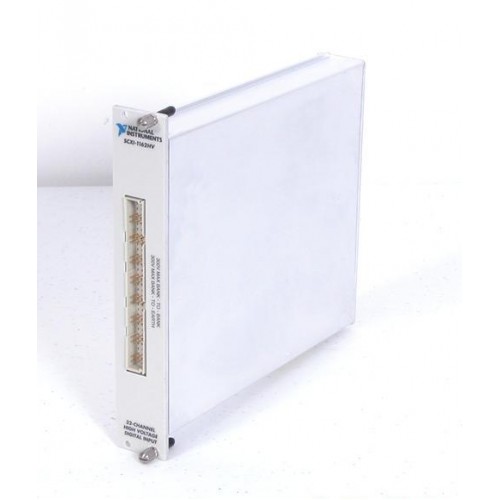

SCXI-1162HV

National Instruments SCXI-1162HV 32-Channel Isolated Digital Input
Features

• 32-Channel Optically Isolated Inputs
• 8 Banks of 4 Lines
• 2,300 Vrms Transient Overvoltage Protection
• 300 Vrms, Cat. II Isolation per Bank

The National Instruments SCXI-1162HV is an optically-isolated digital input module. It has 32 channels which are arranged into 8 isolated banks of four input lines each. The optical isolation eliminates ground-loop problems and isolates the host computer from damaging voltages.

The SCXI-1162HV senses the presence of a wide range of AC or DC signals, from digital logic level signals up to 240 VAC/VDC signals. This module is controlled by the DAQ device serially in multiplexed-mode over the SCXIbus making it easy to integrate multiple modules into existing SCXI systems without additional DAQ devices or cabling. The SCXI-1162HV can also operate in parallel mode when cabled directly to a DIO device.
