PXIE-1065

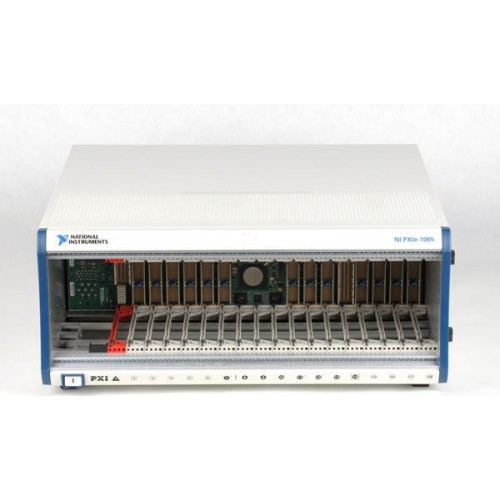

National Instruments PXIe-1065 18-Slot 3U PXI Express Chassis
Features

• Accepts 3U PXI, PXI Express, CompactPCI, and CompactPCI Express Modules
• Up to 1 GB/s per-Slot Dedicated Bandwidth [x4 PCI Express]
• 700 W Available Power for 0 to 55 °C
• Low-Jitter Internal 10 MHz Reference Clock for PXI Slots with 25 ppm Stability
• Low-Jitter Internal 100 MHz Reference Clock for PXI Express Slots with 25 ppm Stability
• Quiet Operation for 0 to 30 °C at 45 dBA
• Variable Speed Fan Controller Optimizes Cooling and Acoustic Emissions
• Remote Power-Inhibit Control
• Complies with PXI and CompactPCI Specifications

The National Instruments PXIe-1065 18-Slot 3U PXI Express Chassis is designed for a wide range of test and measurement applications amd provides a high-bandwidth backplane with up to 1 GB/s per-slot dedicated bandwidth to meet high-performance needs. The NI PXIe-1065 offers a solution for high-channel-density PXI Express systems. This chassis has nine PXI peripheral slots, one PXI Express slot with system timing capabilities, three PXI Express slots, and four hybrid slots that accept both PXI and PXI Express peripheral modules. The NI PXIe-1065 chassis operates over a 0 to 55 ºC temperature range and holds acoustical noise as low as 43.6 dBA at temperatures below 30 ºC. The NI PXIe-1065 chassis incorporates all the features of the latest PXI specification, accepting both PXI and PXI Express modules. The chassis features a built-in 10 MHz reference clock, PXI trigger bus, and PXI star trigger for PXI modules as well as a built-in 100 MHz reference clock, SYNC 100, and PXI differential star trigger for PXI Express modules. Providing more than 3 GB/s total system bandwidth, this high-performance chassis can meet a variety of high-throughput application needs.
