PXIE-1062Q

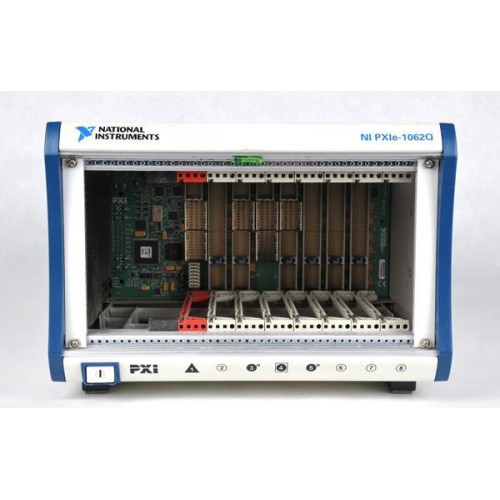

National Instruments PXIe-1062Q 8-Slot PXI Express Chassis
Features

• Accepts 3U PXI, PXI Express, CompactPCI, and CompactPCI Express Modules
• Up to 1 GB/s Per-Slot Dedicated Bandwidth
• 8 3U Slots

The NI PXIe-1062Q 8-slot chassis, designed for a wide range of test and measurement applications, provides a high-bandwidth backplane with up to 1 GB/s per-slot dedicated bandwidth to meet high-performance needs. The NI PXIe-1062Q has four PXI peripheral slots, one PXI Express slot with system timing capabilities, and two PXI Express hybrid slots that accept both PXI and PXI Express peripheral modules. The NI PXIe-1062Q chassis operates over a 0 to 55 ºC temperature range and holds acoustical noise as low as 43.6 dBA at temperatures below 30 ºC. It incorporates all of the features of the latest PXI specification, accepting both PXI and PXI Express modules. The chassis features a built-in 10 MHz reference clock, PXI trigger bus, and PXI star trigger for PXI modules as well as a built-in 100 MHz reference clock, SYNC 100, and PXI differential star trigger for PXI Express modules. Providing more than 3 GB/s total system bandwidth, this high-performance chassis can meet a variety of high-throughput application needs.
