PCI-6034E
- Brand: National Instruments
- Product Code: PCI-6034E
- Part number: pci6034e
$0.00
Ex Tax: $0.00
Price: $50
Available Options

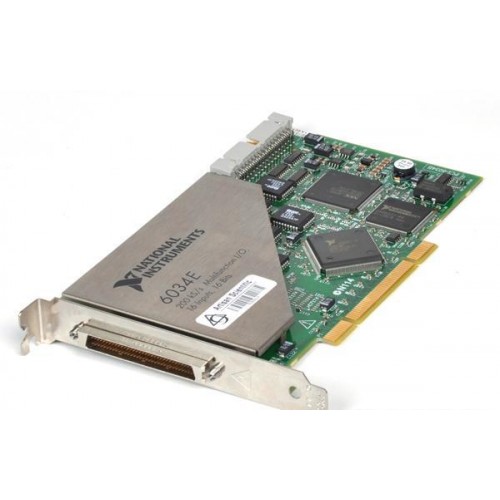

National Instruments PCI-6034E 16-Analog Input Multifunction DAQ
Features
The National Instruments NI PCI-6034E 16-Analog Input Multifunction DAQ features the NI-PGIA, an instrumentation-class amplifier that guarantees settling times at all gains. Typical commercial off-the-shelf amplifier components don't meet the settling time requirements for high-gain measurement applications. Without the NI-PGIA, 16-bit devices with a 100X gain can have an effective resolution of 12 bits. The NI 6034E also offer resolution improvement technologies such as dithering to reduce quantization error. This technology permits NI 16-bit multifunction DAQ devices to perform with an effective input resolution of at least 18-bits. These devices offer several methods in which to connect your signals including differential for eight analog input channels and maximum noise elimination, as well as referenced and nonreferenced singleended for 16 analog input channels. NI 6034E features digital triggering, two 24-bit 20 MHz counter/timers, and eight digital I/O lines compatible with both 5 V TTL and CMOS.
Features
- 16 Analog Inputs At 200 kS/s
- Up To 2 Analog Outputs
- 8 Digital I/O Lines (5 V TTL/CMOS)
- Two 24-Bit Counter/Timers
- Digital Triggering
- 4 Analog Input Signal Ranges
- NI-DAQ Driver Simplifies Configuration And Measurements
The National Instruments NI PCI-6034E 16-Analog Input Multifunction DAQ features the NI-PGIA, an instrumentation-class amplifier that guarantees settling times at all gains. Typical commercial off-the-shelf amplifier components don't meet the settling time requirements for high-gain measurement applications. Without the NI-PGIA, 16-bit devices with a 100X gain can have an effective resolution of 12 bits. The NI 6034E also offer resolution improvement technologies such as dithering to reduce quantization error. This technology permits NI 16-bit multifunction DAQ devices to perform with an effective input resolution of at least 18-bits. These devices offer several methods in which to connect your signals including differential for eight analog input channels and maximum noise elimination, as well as referenced and nonreferenced singleended for 16 analog input channels. NI 6034E features digital triggering, two 24-bit 20 MHz counter/timers, and eight digital I/O lines compatible with both 5 V TTL and CMOS.
