- Brand: National Instruments
- Product Code: CAN BREAKOUT BOX, 197864B 01L, 197864B-01L, 197864B01L
Available Options

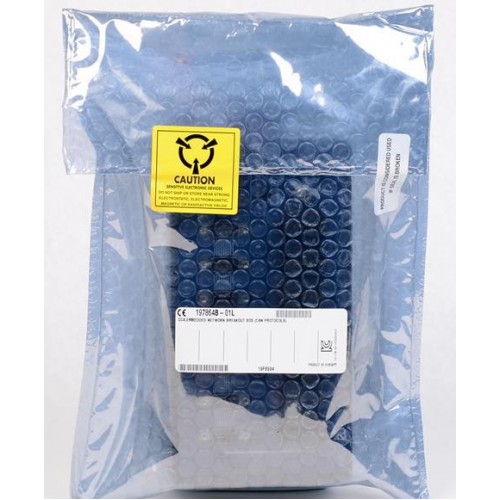

CAN Breakout Box 197864B-01L
Introduction: Reliable Interface for CAN Bus Signal Monitoring and Analysis
The **CAN Breakout Box 197864B-01L** provides an essential tool for engineers and technicians to monitor, diagnose, and test CAN bus signals in industrial and automotive applications. It enables easy access to the physical CAN bus signals for troubleshooting and analysis.
Key Features & Specifications
| Feature | Specification |
|---|---|
| CAN Bus Compatibility | Supports CAN 2.0A/2.0B |
| Input Voltage | 9V to 30V DC |
| Connector Type | DB9 Female |
| Termination Resistor | 120Ω (integrated) |
| LED Indicators | CAN activity, power, and bus status |
| Diagnostic Features | Signal monitoring and error detection |
| Operating Temperature | -40°C to 85°C |
Why It Matters
- Convenient Testing: The CAN Breakout Box makes it easy to interface with the CAN bus, providing clear signal access for monitoring and diagnostics without complicated setups.
- Enhanced Troubleshooting: The integrated termination resistor and LED indicators offer real-time feedback on the bus status, simplifying troubleshooting and issue identification.
- Versatile Compatibility: Compatible with CAN 2.0A/2.0B standards, it is suitable for a wide range of applications in automotive, industrial control, and embedded systems.
Alternative Models from Other Manufacturers
| Feature | 197864B-01L | Vector VN1620 | NI USB-8473 | Intrepid ValueCAN 4-1 |
|---|---|---|---|---|
| CAN Bus Compatibility | CAN 2.0A/2.0B | CAN 2.0A/2.0B | CAN 2.0A/2.0B | CAN 2.0A/2.0B |
| LED Indicators | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C to 85°C | -40°C to 85°C | 0°C to 70°C | -40°C to 85°C |
| Connector Type | DB9 Female | DB9 Male | DB9 Male | DB9 Female |
Customer Testimonials
"The CAN Breakout Box 197864B-01L is a fantastic tool for our team. It simplifies CAN bus diagnostics and helps us quickly identify and solve issues in our automotive systems." - Automotive Engineer, OEM
"We use the 197864B-01L for industrial control systems, and it has greatly improved our ability to troubleshoot communication issues. The LED indicators are a big help!" - Controls Engineer, Manufacturing
User Manual & Documentation
For complete setup instructions, configuration, and troubleshooting, please refer to the official CAN Breakout Box 197864B-01L User Manual.
Conclusion & Final Recommendation
The **CAN Breakout Box 197864B-01L** is an essential tool for engineers and technicians working with CAN bus systems. It provides easy access to CAN bus signals, making it ideal for diagnostic tasks, real-time monitoring, and troubleshooting.
Order the CAN Breakout Box 197864B-01L today to streamline your CAN bus testing and analysis processes!
