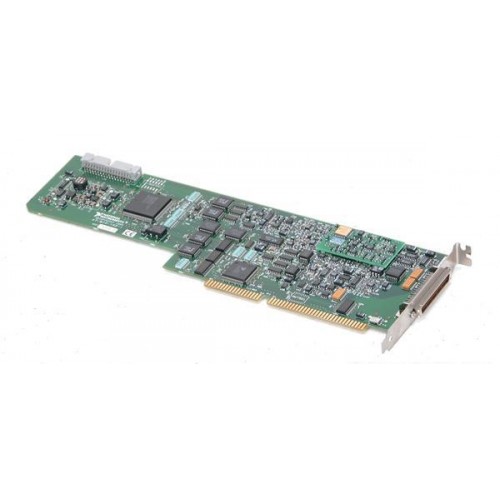

National Instruments AT-MIO-16E-1 Multifunction I/O Device
Features

• Software Configurable Analog Input
• 3 Different Input Modes - NRSE, RSE, and DIFF
• Analog Output Voltage on 2 Channels
• Software, External Digital, and Analog Triggering

The National Instruments AT-MIO-16E-1 device is one of the first completely switchless and jumperless data acquisition (DAQ) device. This feature is made possible by the National Instruments DAQ-PnP bus interface chip that connects the device to the AT I/O bus. The DAQ-PnP implements the Plug and Play ISA Specification so that the DMA, interrupts, and base I/O addresses are all software configurable. This allows you to easily change the AT-MIO-16E-1 device configuration without having to remove the device from the computer. The DAQ-STC makes possible such applications as buffered pulse generation, equivalent time sampling, and seamlessly changing the sampling rate. The AT-MIO-16E-1 devices use the National Instruments DAQ-STC system timing controller for time-related functions. The DAQ-STC consists of three timing groups that control AI, AO, and general-purpose counter/timer functions. These groups include a total of seven 24-Bit and three 16-Bit counters and a maximum timing resolution of 50 ns.
