PCI-DIO-32HS
- Brand: National Instruments
- Product Code: 183480B-01
- Part number: pcidio32hs
$0.00
Ex Tax: $0.00
Price: $50
Available Options

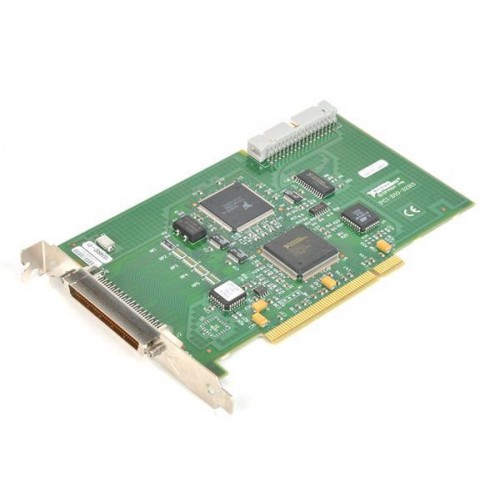

National Instruments PCI-DIO-32HS / PCI-6533 High-Speed Digital I/O Device
Features
The National Instruments PCI-DIO-32HS, also known as the PCI-6533, is a 32-Bit, parallel digital I/O interfaces for PC-compatible computers. The PCI-DIO-32HS devices offer digital data acquisition, digital waveform generation, and high-speed, flexible handshaking. The PCI-DIO-32HS is a completely switchless, jumperless DAQ device for PCI buses, and contains the National Instruments MITE PCI interface. The MITE offers bus-master operation, PCI burst transfers, and high-speed DMA controllers for continuous, scatter-gather DMA without requiring DMA resources from your computer. With PCI-DIO-32HS devices, you can use your computer or chassis as a digital I/O tester, logic analyzer, or system controller for laboratory testing, production testing, and industrial process monitoring and control.
Part Numbers: 183480B-01, 183480C-01, 183480D-01, 777314-01
Features
- Hysteresis and Diode-Based Line Termination on All Inputs
- 16-Sample-Deep FIFO Buffer
- Selectable Data Path Width (8, 16, or 32 Bits)
The National Instruments PCI-DIO-32HS, also known as the PCI-6533, is a 32-Bit, parallel digital I/O interfaces for PC-compatible computers. The PCI-DIO-32HS devices offer digital data acquisition, digital waveform generation, and high-speed, flexible handshaking. The PCI-DIO-32HS is a completely switchless, jumperless DAQ device for PCI buses, and contains the National Instruments MITE PCI interface. The MITE offers bus-master operation, PCI burst transfers, and high-speed DMA controllers for continuous, scatter-gather DMA without requiring DMA resources from your computer. With PCI-DIO-32HS devices, you can use your computer or chassis as a digital I/O tester, logic analyzer, or system controller for laboratory testing, production testing, and industrial process monitoring and control.
Part Numbers: 183480B-01, 183480C-01, 183480D-01, 777314-01
