PC-TIO-10
- Brand: National Instruments
- Product Code: 181195-01
- Part number: pctio10
$0.00
Ex Tax: $0.00
Price: $50
Available Options

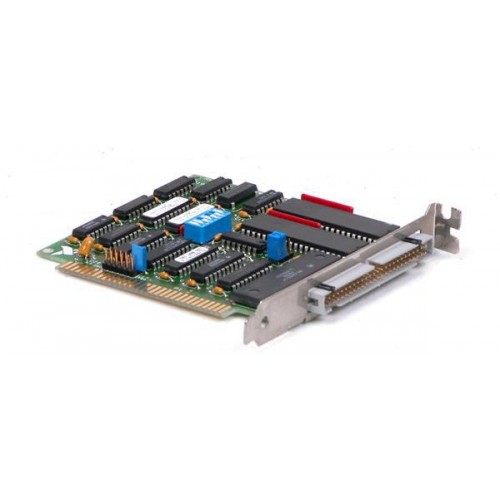

National Instruments PC-TIO-10 Timing and Digital I/O Interface Card
Features
The PC-TIO-10 is a timing and digital I/O interface for the PC. Two AMD AM9513A STCs are used for the timing interface. With these chips, which feature many different timing and counting modes, the PC-TIO-10 can perform a wide range of pulse measurement and wave generation functions. A Motorola MC68B21 PIA is used for the digital I/O interface; each of the two 8-bit I/O ports is bit-configurable. In addition, the PC-TIO-10 has two edge-sensitive interrupt inputs with programmable edge selection. Any external TTL signal, including any of the counter outputs, can be connected to these interrupt inputs.
Part Numbers: 181195-01, 181195B-01, 181195C-01, 181197-01
Features
- Two AMD AM9513A STC's Installed for Timing Interface
- One Motorola MC68B21 PIA Installed for Digital I/O Interface
- Two Edge-Sensitive Interrupt Inputs with Programmable Edge Selection
- Performs a Wide Range of Pulse Measurement and Wave Generation Functions
- ISA Bus Connector
The PC-TIO-10 is a timing and digital I/O interface for the PC. Two AMD AM9513A STCs are used for the timing interface. With these chips, which feature many different timing and counting modes, the PC-TIO-10 can perform a wide range of pulse measurement and wave generation functions. A Motorola MC68B21 PIA is used for the digital I/O interface; each of the two 8-bit I/O ports is bit-configurable. In addition, the PC-TIO-10 has two edge-sensitive interrupt inputs with programmable edge selection. Any external TTL signal, including any of the counter outputs, can be connected to these interrupt inputs.
Part Numbers: 181195-01, 181195B-01, 181195C-01, 181197-01
