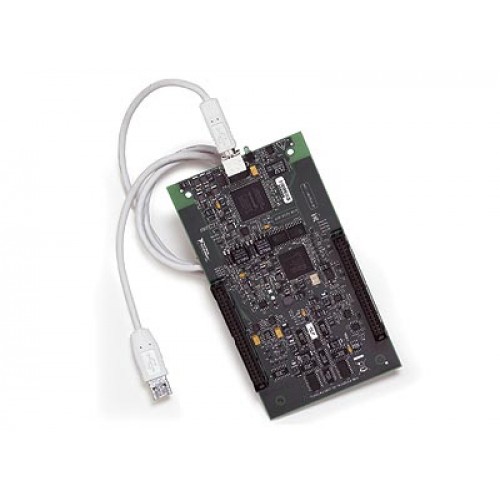

National Instruments USB-6211 OEM Board-only multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

USB-6211 OEM

The NI USB-6211 OEM is a bus-powered, board-only multifunction USB DAQ device for integration into equipment. It combines 16-bit analog acquisition with analog outputs, digital I/O and two 32-bit counters.

ManufacturerNational Instruments
ModelUSB-6211 OEM
Part Number196203-03
Product TypeBoard-only multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6211 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential; 16-bit
Acquisition rate250 kS/s maximum aggregate
Analog outputs2 channels, 16-bit
Digital I/O4 inputs and 4 outputs
IntegrationNo enclosure; one 50-pin I/O connector
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Part number 196203-03 identifies the USB-6211 OEM board-only kit without an enclosure. It belongs to NI's bus-powered M Series and provides multifunction measurement and control through USB 2.0.

The OEM board exposes signals through a 50-pin connector rather than the enclosed model's screw terminals. NI's OEM guide supplies the dedicated pinout, mounting drawings and mating-component information needed for mechanical and electrical integration.

  • Selectable single-ended or differential analog acquisition.
  • Two analog output channels support waveform generation.
  • Two 32-bit counters complement analog and digital I/O.
  • NI signal streaming supports bidirectional high-speed data transfer over USB.
  • Supports motherboard mounting using a mating board socket and mounting hardware.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
ADC resolution16 bit
Maximum analog input sample rate250 single-channel or multichannel aggregate kS/s
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog output channels2
DAC resolution16 bit
Maximum analog output update rate250 per channel, with one or two channels operating kS/s
Analog output range±10 V
Digital channels4 inputs; 4 outputs
Counters2 counters, 32-bit
Power sourceUSB bus
OEM I/O connectorOne 50-pin connector, J7
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series USB-621x OEM

Board-level DAQ family

USB-6211 OEM

Multifunction acquisition and output board

Host interface

USB 2.0

Use the USB-6211 OEM pinout and mounting drawings; do not use enclosed-model connector or enclosure dimensions.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-621x OEM User GuideOEM Integration Guide · download.ni.com
Open →
USB-6211 SpecificationsSpecifications · ni.com
Open →
USB-6211 Product and Variant InformationManufacturer Product Page · ni.com
Open →
OEM Pinout, Mounting Drawings and Interface ComponentsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6211View product →
Related model
USB-6212 OEMView product →
Related model
USB-6216 OEMView product →
Related model
USB-6218 OEMView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USB-6211 OEM include an enclosure?

No. NI identifies part number 196203-03 as the board-only OEM kit without an enclosure.
