National Instruments · USB

USB-6218 OEM

Name: USB-6218 OEM
Brand: National Instruments

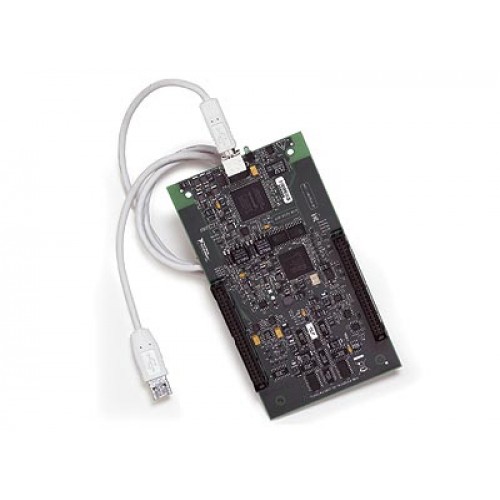

The NI USB-6218 OEM is a bus-powered, board-only multifunction USB DAQ device with 32 analog inputs and two analog outputs, intended for integration into OEM equipment.

ManufacturerNational Instruments

ModelUSB-6218 OEM

Part Number196203-01

Product TypeBoard-only multifunction DAQ device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6218 OEM

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs32 single-ended or 16 differential

Input resolution16-bit

Maximum acquisition rate250 kS/s

Digital connections8 inputs and 8 outputs

Integration connectorsTwo 50-pin I/O connectors

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Part number 196203-01 identifies the USB-6218 OEM board-only version without an enclosure.

NI's OEM guide provides board dimensions, mounting arrangements and model-specific pinouts. The board can mount to a motherboard through one or both 50-pin connectors using suitable sockets and standoffs.

Two 16-bit analog outputs with a maximum update rate of 250 kS/s.
Two 32-bit counters.
Dedicated digital input and output signals appear on the OEM connector pinout.

Verified specifications

Technical data

Verified product specifications.

Single-ended analog inputs	32 channels
Differential analog inputs	16 channels
Analog input resolution	16 bits
Maximum analog input sample rate	250 kS/s
Analog outputs	2 channels
Analog output resolution	16 bits
Maximum analog output update rate	250 kS/s
Digital inputs	8 channels
Digital outputs	8 channels
I/O connectors	2 × 50-pin

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series USB-621x OEM

Board-level DAQ family

USB-6218 OEM

OEM integration board

Integration reference

Use the USB-6218 OEM pinout, not the USB-6211 or USB-6212/6216 pinouts in the same guide.

Check model-specific wiring, mounting and end-product compliance requirements before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-621x OEM User GuideOEM Integration Guide · download.ni.com

Open →

NI USB-6218 Product Page and Variant SpecificationsManufacturer Product Page · ni.com

Open →

OEM Connector Pinouts, Dimensions and Mounting ReferencesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USB-6218 OEM have 4 or 8 digital inputs and outputs?

The OEM pinout shows eight digital inputs, P0.0 through P0.7, and eight digital outputs, P1.0 through P1.7.

Where are the OEM mounting details?

The NI USB-621x OEM User Guide includes dimensions, motherboard mounting examples and connector component references for the USB-6218 OEM.
