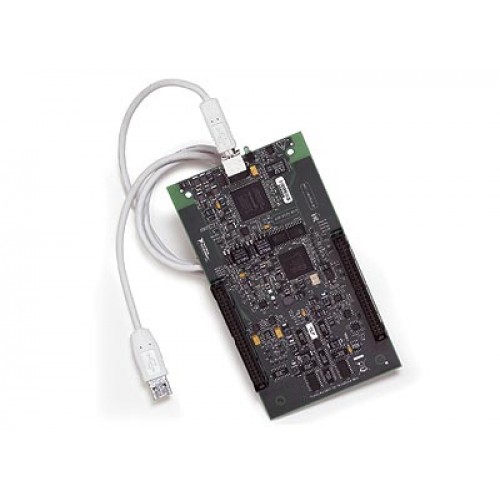

National Instruments USB-6212 OEM Board-level multifunction DAQ device
1 image: Click to enlarge
National Instruments · USB

USB-6212 OEM

The NI USB-6212 OEM is a bus-powered, board-level M Series multifunction DAQ device for integration into custom equipment. It combines 16-bit analog acquisition with analog outputs, digital I/O and counters.

ManufacturerNational Instruments
ModelUSB-6212 OEM
Part Number197504-03
Product TypeBoard-level multifunction DAQ device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6212 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog input16 channels, 16-bit, up to 400 kS/s
Analog output2 channels, up to 250 kS/s
Digital I/O32 bidirectional lines
CountersTwo 32-bit counters
Integration connectorsTwo 50-pin connectors
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This OEM version provides board-level access rather than the connection arrangement of an enclosed USB-6212 variant. NI documents dedicated connector pinouts, mounting options and component information for integration.

NI Signal Streaming supports bidirectional high-speed data transfer across USB. NI identifies embedded OEM, test and control among the USB-6212 family's applications.

  • USB bus-powered operation.
  • Analog input, analog output, digital I/O and counter functions on one board.
  • Motherboard mounting through one or both 50-pin connectors using suitable board-mount sockets.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 channels
Analog input resolution16 bit
Maximum analog input sample rate400 kS/s
Analog output channels2 channels
Maximum analog output update rate250 kS/s
Bidirectional digital I/O32 lines
Counters2 × 32-bit
I/O connectors2 × 50-pin, J6 and J7
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series USB-621x

USB DAQ family

USB-6212 OEM

Board-level integration device

Host interface

USB 2.0

Use the OEM-specific pinout and mounting guide; end-product compliance remains the integrator's responsibility.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-621x OEM User GuideOEM Integration Guide · download.ni.com
Open →
USB-6212 Product Family and Variant DetailsManufacturer Product Page · ni.com
Open →
OEM connector pinouts, mounting drawings and interface componentsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6212View product →
Related model
USB-6216 OEMView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does the USB-6212 OEM connect to custom hardware?

It provides two 50-pin connectors. NI's OEM guide includes the pinout and describes motherboard mounting with board-mount sockets.

Which part number identifies this OEM version?

NI lists 197504-03 for the USB-6212 OEM board-only variant.
