Home / Shop / USB-6211

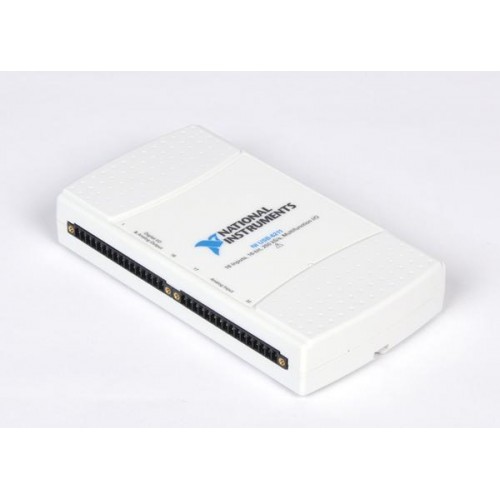

USB-6211, front view
USB-6211, front view additional viewUSB-6211, front view additional viewUSB-6211, front view additional view
4 images: additional views below.Click to enlarge
NI (National Instruments) · USB 2.0

USB-6211

The NI USB-6211 is a bus-powered USB multifunction data acquisition device with 16-bit analog input and output, digital I/O, and two counters. It provides 16 single-ended analog inputs with a maximum sample rate of 250 kS/s and two analog outputs.

ManufacturerNI (National Instruments)
ModelUSB-6211
Part Number780104-01 · 779676-01
Product Type16 AI (16-Bit, 250 kS/s), 2 AO (250 kS/s), 4 DI, 4 DO USB Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6211

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Power InputBus Powered
Max Single-Ended Analog Input Channels16
Number of Counters/Timers2
Analog Input FIFO Buffer Size4095 samples
Maximum Sample Rate250 kS/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6211 combines analog measurement, analog output, digital I/O, and counter functions in a USB 2.0 device. Its analog input subsystem offers 16 single-ended channels, 16-bit resolution, and a maximum sample rate of 250 kS/s. It does not support simultaneous sampling.

Two 16-bit analog outputs provide a maximum update rate of 250 kS/s. Four digital inputs, four digital outputs, and two counters/timers extend the device beyond voltage acquisition, while bus-powered operation supplies power through the USB connection.

  • 16-bit analog input with a maximum sample rate of 250 kS/s.
  • Selectable analog input ranges of ±0.2 V, ±1 V, ±5 V, and ±10 V.
  • Two 16-bit analog output channels with a maximum update rate of 250 kS/s.
  • Four digital inputs, four digital outputs, and two counters/timers.
  • Bus-powered USB 2.0 interface.
Verified specifications

Technical data

Verified product specifications.

Supported Power InputBus Powered
Maximum Number of Single-Ended Analog Input Channels16
Number of Counters/Timers2
Analog Input FIFO Buffer Size4095 samples
Maximum Sample Rate250 kS/s
Simultaneous SamplingNo
Analog Input Resolution16 bits
Bus ConnectorUSB 2.0
Number of Analog Output Channels2
Maximum Analog Update Rate250 kS/s
Bus ConnectionUSB 2.0
Analog Input Voltage Range-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
Analog Output Resolution16 bits
NI part numbers780104-01, 779676-01, 196203-03
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connector

USB-6211

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How is the USB-6211 powered?

The USB-6211 is bus powered through its USB connection.

Does the USB-6211 support simultaneous sampling?

No. The USB-6211 does not support simultaneous analog input sampling.

How many analog input and output channels does it have?

It provides up to 16 single-ended analog input channels and two analog output channels. Both analog input and output have 16-bit resolution.
