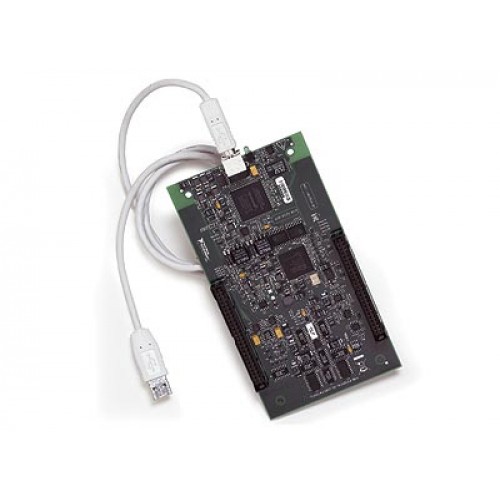

National Instruments USB-6216 OEM Board-level multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

USB-6216 OEM

The NI USB-6216 OEM is a bus-powered M Series USB DAQ board with analog input, analog output and digital I/O. Its board-level format supports integration into OEM equipment.

ManufacturerNational Instruments
ModelUSB-6216 OEM
Part Number197504-01
Product TypeBoard-level multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6216 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog input16 single-ended or 8 differential; 16-bit
Maximum acquisition rate400 kS/s
Analog output2 channels; 16-bit; up to 250 kS/s
Digital I/O32 bidirectional channels
Integration connectionsTwo 50-pin connectors
