NI (National Instruments) NI-9244 400 Vrms L-N, 690 Vrms L-L, 50 kS/s/ch, 24-Bit, 3-Phase C Series Voltage Input Module

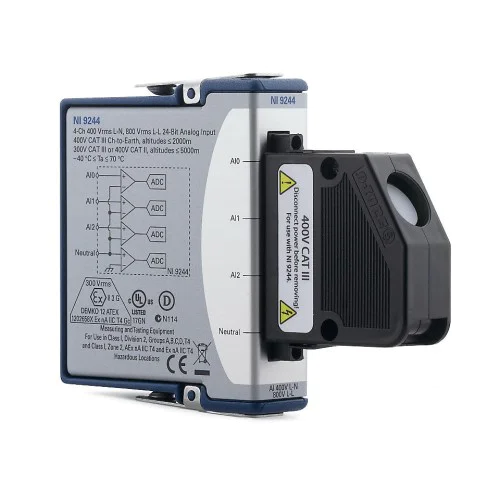

1 image: Click to enlarge

NI (National Instruments) · C Series

NI-9244

The NI-9244 is a three-phase C Series voltage input module with three single-ended channels, 24-bit resolution, and simultaneous sampling up to 50 kS/s/ch. Its listed analog input range is 0 to 400 Vrms.

ManufacturerNI (National Instruments)

ModelNI-9244

Part Number783106-01

Product Type400 Vrms L-N, 690 Vrms L-L, 50 kS/s/ch, 24-Bit, 3-Phase C Series Voltage Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9244

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Supported Hardware PlatformC Series

Analog Input Voltage Range0 Vrms to 400 Vrms

Analog Input Resolution24 bits

Maximum Sample Rate50 kS/s/ch

Analog Input Isolation400 Vrms Ch-Earth Ground Isolation

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9244 provides three single-ended voltage input channels in the NI C Series family. The supplied structured record identifies support for single- and three-phase measurement configurations, including WYE and delta.

Simultaneous sampling and anti-alias filtering support acquisition of voltage waveforms for transient and harmonic analysis. Screw-terminal connections provide the front-panel signal interface.

Three single-ended analog input channels with simultaneous sampling.
24-bit resolution and a maximum sample rate of 50 kS/s per channel.
Listed voltage ratings of 400 Vrms line-to-neutral and 690 Vrms line-to-line.
Anti-alias filtering for voltage waveform acquisition.
Screw-terminal front connection and C Series bus interface.
Enclosed construction with a listed operating temperature range of -40 to 70 °C.

Verified specifications

Technical data

Verified product specifications.

Supported Hardware Platform	C Series
Conformal Coated	No
Analog Input Voltage Range	0 Vrms to 400 Vrms
Enclosed	Yes
Analog Input Resolution	24 bits
Maximum Sample Rate	50 kS/s/ch
Analog Input Isolation	400 Vrms Ch-Earth Ground Isolation
Maximum Number of Single-Ended Analog Input Channels	3
Front Connection Type	Screw Terminal
Simultaneous Sampling	Yes
Bus Connection	C Series
Filtering	Anti-Alias
Operating Temperature Range	-40 °C to 70 °C
NI part numbers	783106-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9244

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the part number for the NI-9244?

The listed NI part number is 783106-01.

How many analog input channels does the NI-9244 have?

It has three single-ended analog input channels and no differential analog input channels.

Does the NI-9244 sample its channels simultaneously?

Yes. The listed maximum sample rate is 50 kS/s per channel, with simultaneous sampling and 24-bit resolution.

What voltage range is listed for the NI-9244?

The preserved verified specification lists an analog input range of 0 to 400 Vrms. The product identity lists 400 Vrms line-to-neutral and 690 Vrms line-to-line. Consult the NI specifications and wiring guide for the applicable configuration and safety limits.

What connections does the NI-9244 use?

It uses screw-terminal signal connections and a C Series bus connection.
