NI (National Instruments) NI-9224 ±10 V, 1 kS/s/ch, 24-Bit, Simultaneous Input, 8-Channel C Series Voltage Input Module

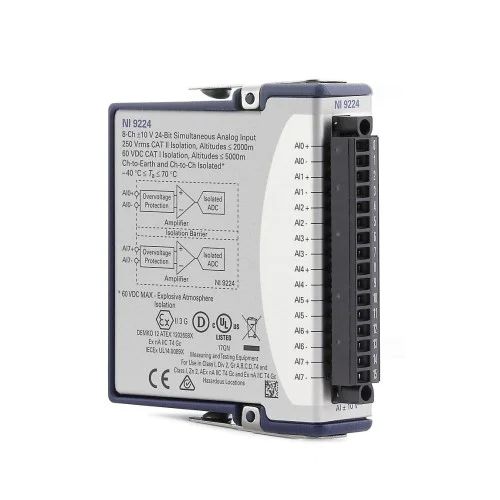

1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9224

The NI-9224, part number 783862-01, is an 8-channel C Series voltage input module with differential, simultaneous analog input, 24-bit resolution and a ±10 V input range.

ManufacturerNI (National Instruments)
ModelNI-9224
Part Number783862-01
Product Type±10 V, 1 kS/s/ch, 24-Bit, Simultaneous Input, 8-Channel C Series Voltage Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9224

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels8
Supported Hardware PlatformC Series
Analog Input Voltage Range-10 V to 10 V
Analog Input Resolution24 bits
Maximum Sample Rate1 kS/s/ch
Analog Input Isolation250 Vrms Ch-Ch Isolation
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9224 provides eight differential voltage input channels for a C Series measurement system. It combines a ±10 V input range with 24-bit resolution, simultaneous sampling and a maximum sample rate of 1 kS/s per channel. Channel-to-channel isolation is rated at 250 Vrms.

The enclosed module uses screw terminal connections and offers low-latency and 50/60 Hz rejection filtering options. Its operating temperature range is −40 °C to 70 °C. Consult the NI specifications and getting-started guide for wiring and integration requirements.

  • Eight differential analog input channels with a −10 V to +10 V input range.
  • 24-bit resolution with a maximum sample rate of 1 kS/s per channel.
  • Simultaneous sampling across the input channels.
  • 250 Vrms channel-to-channel analog input isolation.
  • Low-latency and 50/60 Hz rejection filtering options.
  • Enclosed C Series module with screw terminal front connections.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels8
Supported Hardware PlatformC Series
Conformal CoatedNo
Analog Input Voltage Range-10 V to 10 V
EnclosedYes
Analog Input Resolution24 bits
Maximum Sample Rate1 kS/s/ch
Analog Input Isolation250 Vrms Ch-Ch Isolation
Front Connection TypeScrew Terminal
Simultaneous SamplingYes
Bus ConnectionC Series
Filtering50/60 Hz Rejection, Low-Latency
Operating Temperature Range-40 °C to 70 °C
NI part numbers783862-01
