NI (National Instruments) NI-9228 ±60 V, 1 kS/s/ch, 24-Bit, Simultaneous Input, 8-Channel C Series Voltage Input Module

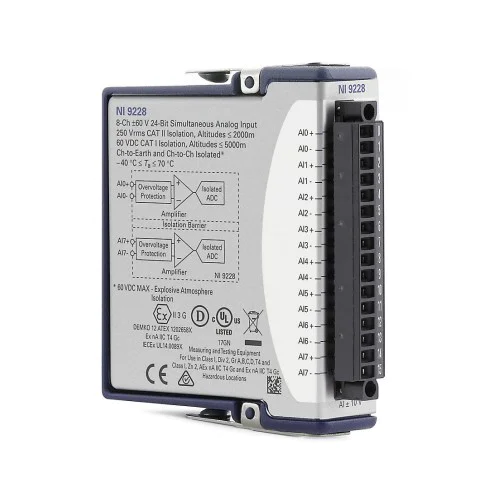

1 image: Click to enlarge

NI (National Instruments) · C Series

NI-9228

The NI-9228 is an 8-channel C Series voltage input module with differential inputs, a ±60 V input range and 24-bit resolution. It supports simultaneous sampling at up to 1 kS/s per channel.

ManufacturerNI (National Instruments)

ModelNI-9228

Part Number783861-01 · 783861-02

Product Type±60 V, 1 kS/s/ch, 24-Bit, Simultaneous Input, 8-Channel C Series Voltage Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9228

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Differential Analog Input Channels8

Supported Hardware PlatformC Series

Analog Input Voltage Range-60 V to 60 V

Analog Input Resolution24 bits

Maximum Sample Rate1 kS/s/ch

Analog Input Isolation250 Vrms Ch-Ch Isolation

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9228 provides eight differential voltage inputs in the NI C Series module format. Its ±60 V input range, 24-bit resolution and simultaneous sampling provide the core measurement capabilities of this module.

The enclosed module uses screw-terminal connections and provides 250 Vrms channel-to-channel isolation. The maximum sample rate is 1 kS/s per channel; chassis, controller and software support should be checked for the intended system.

Eight differential analog input channels with simultaneous sampling.
Bipolar voltage input range from −60 V to +60 V.
24-bit analog input resolution.
Maximum sampling rate of 1 kS/s per channel.
250 Vrms channel-to-channel analog input isolation.
Enclosed C Series module with screw-terminal front connections.
Operating temperature range of −40 °C to +70 °C.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels	8
Supported Hardware Platform	C Series
Analog Input Voltage Range	-60 V to 60 V
Enclosed	Yes
Analog Input Resolution	24 bits
Maximum Sample Rate	1 kS/s/ch
Analog Input Isolation	250 Vrms Ch-Ch Isolation
Front Connection Type	Screw Terminal
Simultaneous Sampling	Yes
Bus Connection	C Series
Operating Temperature Range	-40 °C to 70 °C
NI part numbers	783861-01, 783861-02

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9228

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many input channels does the NI-9228 provide?

The NI-9228 provides eight differential analog input channels. The listed number of single-ended analog input channels is zero.

What voltage range and resolution does the NI-9228 support?

It supports a −60 V to +60 V analog input range with 24-bit resolution.

Does the NI-9228 sample its channels simultaneously?

Yes. It supports simultaneous sampling with a maximum sample rate of 1 kS/s per channel.

What isolation and signal connections does the NI-9228 provide?

The module provides 250 Vrms channel-to-channel analog input isolation and uses screw-terminal front connections. Consult the NI specifications and getting-started documentation for wiring and safety requirements.
