NI (National Instruments) NI-9220 ±10 V, 100 kS/s/ch, 16-Bit, Simultaneous Input, 16-Channel C Series Voltage Input Module

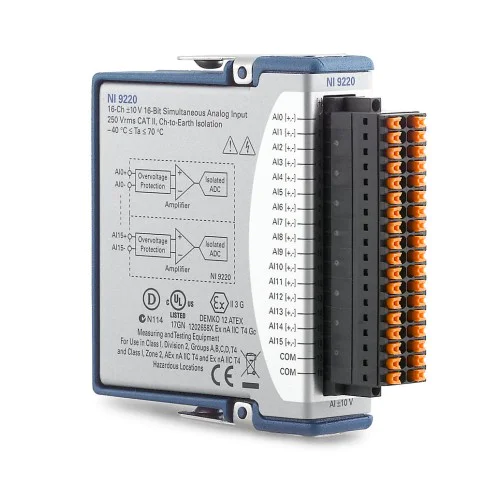

1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9220

The NI-9220 is a 16-channel C Series voltage input module with a ±10 V input range, 16-bit resolution and simultaneous sampling at up to 100 kS/s per channel.

ManufacturerNI (National Instruments)
ModelNI-9220
Part Number782615-02 · 782615-01
Product Type±10 V, 100 kS/s/ch, 16-Bit, Simultaneous Input, 16-Channel C Series Voltage Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9220

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels16
Supported Hardware PlatformC Series
Analog Input Voltage Range-10 V to 10 V
Analog Input Resolution16 bits
Maximum Sample Rate100 kS/s/ch
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9220 provides 16 differential voltage inputs in a C Series module. Simultaneous sampling captures the channels at the same time, with a maximum sample rate of 100 kS/s per channel and 16-bit resolution across a -10 V to 10 V input range.

The module has an enclosed construction and a C Series bus connection. Use the NI specifications and getting-started documentation to check installation requirements and the electrical limits applicable to the selected part number.

  • 16 differential analog input channels.
  • Bipolar voltage measurement range of -10 V to 10 V.
  • 16-bit analog input resolution.
  • Simultaneous sampling at up to 100 kS/s per channel.
  • Enclosed C Series module construction.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels16
Supported Hardware PlatformC Series
Analog Input Voltage Range-10 V to 10 V
EnclosedYes
Analog Input Resolution16 bits
Maximum Sample Rate100 kS/s/ch
Simultaneous SamplingYes
Bus ConnectionC Series
FilteringGreater than 100 KHz
Operating Temperature Range-40 °C to 70 °C
NI part numbers782615-02, 782615-01, 785188-01
