NI (National Instruments) NI-9209 ±10 V, 500 S/s, 16-Channel C Series Voltage Input Module

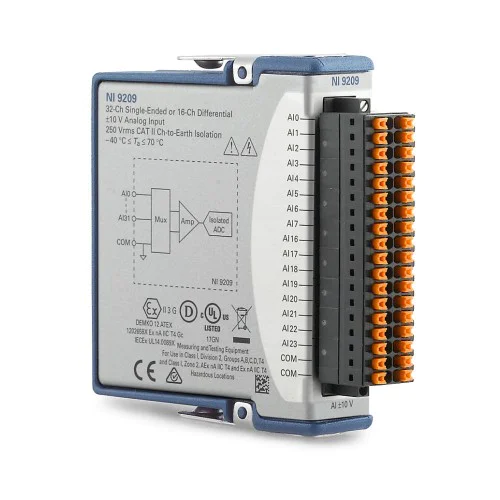

1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9209

The NI-9209 is a C Series voltage input module supporting 16 differential or 32 single-ended analog input channels. It provides a ±10 V input range, 24-bit resolution, and a maximum sample rate of 500 S/s.

ManufacturerNI (National Instruments)
ModelNI-9209
Part Number785042-01 · 783729-01
Product Type±10 V, 500 S/s, 16-Channel C Series Voltage Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9209

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels16
Supported Hardware PlatformC Series
Analog Input Voltage Range-10 V to 10 V
Analog Input Resolution24 bits
Maximum Sample Rate500 S/s
Max Single-Ended Analog Input Channels32
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9209 provides single-ended or differential voltage acquisition in an enclosed C Series module. Its channel configuration supports up to 16 differential inputs or 32 single-ended inputs, with a -10 V to 10 V measurement range and 24-bit resolution.

Built-in 50/60 Hz rejection filtering and 60 VDC CAT I isolation are provided. The maximum sample rate is 500 S/s, and sampling is not simultaneous. The operating temperature range is -40 °C to 70 °C.

  • Supports 16 differential or 32 single-ended analog input channels.
  • Measures voltages from -10 V to 10 V with 24-bit resolution.
  • Maximum sample rate of 500 S/s.
  • Built-in 50/60 Hz rejection filtering.
  • Provides 60 VDC CAT I isolation.
  • Enclosed construction with a C Series bus connection.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels16
Supported Hardware PlatformC Series
Conformal CoatedNo
Analog Input Voltage Range-10 V to 10 V
EnclosedYes
Analog Input Resolution24 bits
Maximum Sample Rate500 S/s
Maximum Number of Single-Ended Analog Input Channels32
Simultaneous SamplingNo
Bus ConnectionC Series
Filtering50/60 Hz Rejection
Operating Temperature Range-40 °C to 70 °C
NI part numbers785042-01, 783729-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9209

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9244View product →
Related model
NI-9220View product →
Related model
NI-9224View product →
Related model
NI-9228View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of module is the NI-9209?

The NI-9209 is a C Series voltage input module with a ±10 V input range, 24-bit resolution, and a maximum sample rate of 500 S/s.

How many input channels does the NI-9209 support?

It supports up to 16 differential or 32 single-ended analog input channels.

Does the NI-9209 sample channels simultaneously?

No. The NI-9209 does not support simultaneous sampling.

Does the NI-9209 provide power-line frequency rejection?

Yes. The module includes built-in 50/60 Hz rejection filtering.

Ask SOHO AssistantProduct & compatibility help
