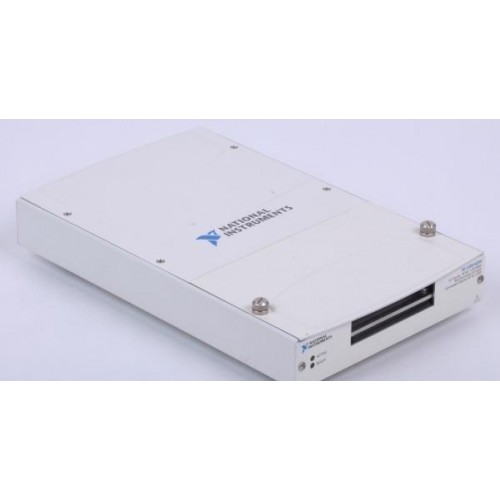

National Instruments USB-6259 Multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

USB-6259

The National Instruments USB-6259 is an M Series USB multifunction DAQ device combining 16-bit analog acquisition, four analog outputs, 48 digital I/O lines and two counters/timers. The catalog record does not identify its connection variant.

ManufacturerNational Instruments
ModelUSB-6259
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6259

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs32 single-ended or 16 differential
Input resolution16-bit
Maximum AI sampling1.25 MS/s single channel; 1.00 MS/s aggregate multichannel
Analog outputs4
Digital I/O48 bidirectional lines
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6259 brings analog and digital I/O together in a USB-connected M Series device. Its multifunction architecture provides acquisition, signal output and counter/timer resources within one device.

The 1.25 MS/s input rating applies to single-channel acquisition. Multichannel acquisition has a 1.00 MS/s aggregate maximum, not a 1.25 MS/s rate on every channel.

  • 16-bit analog input conversion.
  • Four analog output channels alongside 48 digital I/O lines.
  • Two counter/timer resources.
  • Selectable bipolar analog input ranges from ±0.1 V to ±10 V.
Verified specifications

Technical data

Verified product specifications.

Analog input channels32 single-ended or 16 differential
ADC resolution16 bits
Maximum single-channel AI sample rate1.25 MS/s
Maximum multichannel AI sample rate, aggregate1.00 MS/s
Analog input ranges±0.1, ±0.2, ±0.5, ±1, ±2, ±5, ±10 V
Analog output channels4
Bidirectional digital I/O lines48
Counters/timers2
Host interfaceUSB 2.0
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series / USB

DAQ family and host interface

USB-6259

Multifunction I/O device

Connection variants

NI documents screw-terminal, BNC, mass-termination and OEM USB-6259 models.

Identify the exact connection variant and part number before selecting cables, terminal accessories or a pinout.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-6259 Product PageProduct Page · ni.com
Open →
PCI/PCIe/PXI/PXIe/USB-6259 SpecificationsSpecifications And Pinouts · ni.com
Open →
USB-6259 Dimensional DrawingsDimensional Drawings · ni.com
Open →
NI 62xx Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6259 BNCView product →
Related model
USB-6259 OEMView product →
Related model
USB-6259 Mass TermView product →
Related model
USB-6259 Screw TerminalView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USB-6259 sample every input at 1.25 MS/s?

No. The maximum is 1.25 MS/s for one channel and 1.00 MS/s aggregate for multichannel acquisition.

Which USB-6259 connection variant does this record represent?

The supplied record identifies only USB-6259. NI documents BNC, screw-terminal, mass-termination and OEM variants; the exact unit must be identified before choosing connection hardware.
