National Instruments · USB

NI USB-6259 Mass Term

Name: NI USB-6259 Mass Term
Brand: National Instruments

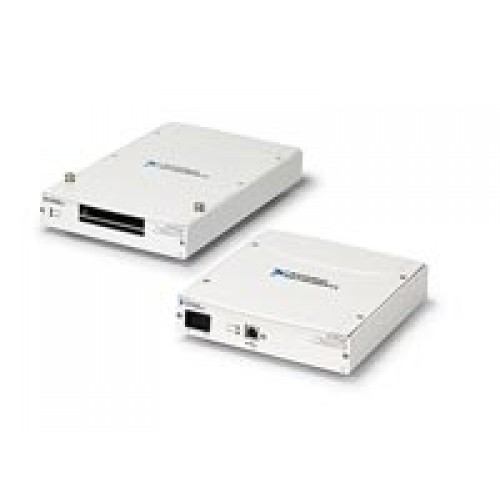

The NI USB-6259 Mass Term is an M Series USB multifunction DAQ device with 32 analog inputs, 4 analog outputs, and 48 digital I/O lines. Its mass-termination interface provides two 68-pin SCSI connectors for cabled signal access.

ManufacturerNational Instruments

ModelUSB-6259 Mass Term

Product TypeMultifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6259 Mass Term

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs32 single-ended, 16-bit

Analog outputs4 channels

Digital I/O48 lines

Signal connectorsTwo 68-pin SCSI mass-termination connectors

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This USB-6259 variant uses mass-termination connectors rather than onboard BNC or screw-terminal signal connections. Signals are routed through cables to external connection accessories.

The host interface is Hi-Speed USB 2.0. When selecting signal cabling and terminal blocks, use the USB mass-termination compatibility guidance and check the pinout for each connector.

16-bit analog input conversion.
Analog input, analog output, and digital I/O in one USB device.
Dual mass-termination connectors support external signal breakout.

Verified specifications

Technical data

Verified product specifications.

Single-ended analog input channels	32 channels
Analog input resolution	16 bits
Analog output channels	4 channels
Digital I/O lines	48 lines
Host interface	Hi-Speed USB 2.0
Signal connectors	Two 68-pin SCSI 0.050 D-Type connectors

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB M Series

DAQ family and host interface

USB-6259 Mass Term

Mass-termination multifunction DAQ variant

Check connector-specific pinouts and accessory limitations before wiring.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-6259 Product PageProduct Page · ni.com

Open →

NI 62xx Cable and Accessory Compatibility GuideCompatibility Guide · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What does Mass Term mean for this USB-6259?

It identifies the mass-termination version, which uses two 68-pin SCSI connectors for cabled signal access rather than onboard BNC or screw-terminal connections.

How many analog and digital channels does it provide?

The USB-6259 provides 32 single-ended analog inputs, 4 analog outputs, and 48 digital I/O lines.
