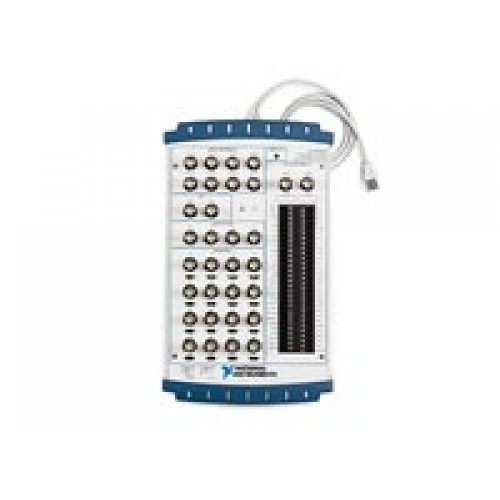

The NI USB-6259 BNC is an M Series multifunction USB data acquisition device with integrated BNC and screw-terminal connections.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This record identifies the integrated BNC version, not the USB-6259 mass-termination, screw-terminal or OEM versions. Use the BNC-specific channel configuration and pinout when planning connections.
Verified product specifications.
| Differential analog inputs | 16 channels |
|---|---|
| ADC resolution | 16 bits |
| Maximum single-channel input sample rate | 1.25 MS/s |
| Maximum multichannel input sample rate | 1.00 aggregate MS/s |
| Analog outputs | 4 channels |
| DAC resolution | 16 bits |
| Maximum analog output update rate | 2.86 with one channel; 2.00 with two; 1.54 with three; 1.25 with four MS/s |
| Digital I/O lines | 48 lines |
| Counters/timers | 2 |
| Host interface | USB 2.0 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
DAQ platform and family
Integrated BNC variant
NI-DAQmx; select a release supporting the device and intended operating system.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI lists the integrated BNC version with 16 differential inputs. Do not apply the general USB-6259 family's 32-single-ended-channel description to this variant.
The M Series User Manual includes a dedicated USB-6259 BNC top-panel and pinout diagram, Figure A-24.
NI-DAQmx supports the USB-6259. Check device and operating-system support for the particular driver release before installation.
