USB-6216

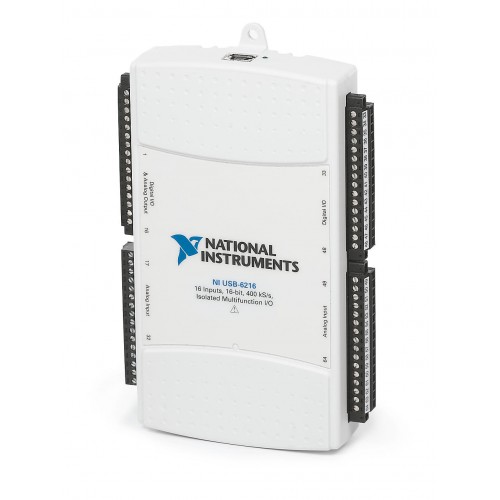

1 image: Click to enlarge
National Instruments · USB

USB-6216

The NI USB-6216 is a bus-powered, isolated multifunction USB DAQ device with analog I/O, digital I/O, and two 32-bit counters. The catalog-associated part number 780108-01 identifies the screw-terminal version.

ManufacturerNational Instruments
ModelUSB-6216
Part Number780108-01
Product TypeIsolated multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6216

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input resolution16-bit
Maximum acquisition rate400 kS/s aggregate
Analog outputs2 channels
PowerUSB bus powered
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6216 combines voltage acquisition, analog generation, digital I/O, and counter functions in a USB-connected instrument. NI identifies portable logging, field monitoring, test, and control among its applications.

Connection style matters: NI lists screw-terminal, mass-termination, and BNC versions. Confirm the physical connector and part number before selecting wiring accessories.

  • Isolated measurement front end.
  • USB signal streaming for bidirectional data transfer.
  • Two 32-bit counters.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
Analog input resolution16 bit
Maximum analog input sampling rate400; aggregate for multichannel acquisition kS/s
Simultaneous samplingNo
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog input FIFO4095 samples
Analog output channels2
Analog output resolution16 bit
Maximum analog output update rate250 per channel kS/s
Analog output range±10 V
Digital I/O lines32 screw-terminal; 24 BNC/mass-termination
Host interfaceUSB 2.0
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB M Series

DAQ family and host interface

USB-6216

Isolated multifunction DAQ

Driver

NI-DAQmx

Verify connector variant before choosing cables or terminal accessories.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-6216 Official Product PageProduct Page · ni.com
Open →
USB-6216 SpecificationsSpecifications PDF · download.ni.com
Open →
USB-6216 Dimensional DrawingsDimensional Drawings And CAD · ni.com
Open →
USB-6216 Dimensional Drawings and CAD ModelsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does part number 780108-01 use a SCSI connector?

NI identifies 780108-01 as the screw-terminal version. The 68-pin SCSI connector belongs to the mass-termination version.

Does isolation allow direct mains measurements?

No. It is CAT I equipment, not for CAT II, III, or IV measurements. The continuous isolation limit is 30 Vrms/60 VDC/42.4 Vpk.
