USB-6003 OEM

Name: USB-6003 OEM
Brand: National Instruments

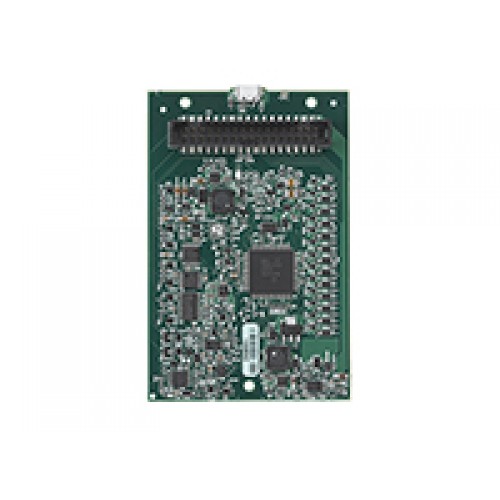

The NI USB-6003 OEM is the board-only, unenclosed USB-6003 variant, part number 782609-01. It combines analog input, analog output, digital I/O and a counter for integration into larger systems.

ManufacturerNational Instruments

ModelUSB-6003 OEM

Part Number782609-01

Product TypeMultifunction data acquisition board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6003 OEM

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs8 single-ended or 4 differential; 16-bit

Maximum input sample rate100 kS/s

Analog outputs2 channels

Digital I/O13 bidirectional channels

Integration connector34-pin header
