NI (National Instruments) USB-6003 8 AI (16-Bit, 100 kS/s), 2 AO (5 kS/s/ch), 13 DIO USB Multifunction I/O Device

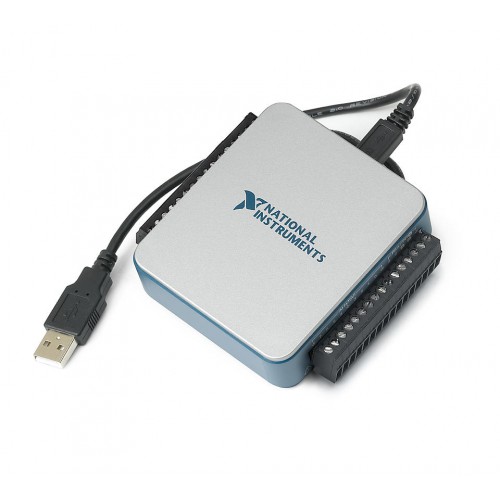

1 image: Click to enlarge

NI (National Instruments) · USB 2.0

USB-6003

Name: USB-6003
Brand: NI (National Instruments)

The NI USB-6003 is a bus-powered USB multifunction I/O device with 16-bit analog input at up to 100 kS/s, 2 analog output channels, 13 bidirectional digital channels and one counter/timer.

ManufacturerNI (National Instruments)

ModelUSB-6003

Part Number782608-01 · 782609-01

Product Type8 AI (16-Bit, 100 kS/s), 2 AO (5 kS/s/ch), 13 DIO USB Multifunction I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6003

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels13

Supported Power InputBus Powered

Max Single-Ended Analog Input Channels8

Number of Counters/Timers1

Max Differential Analog Input Channels4

Analog Input Absolute Accuracy26 mV

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6003 combines analog acquisition, analog output, digital I/O and a counter/timer in a USB-connected device. Its analog inputs provide 16-bit resolution with up to 8 single-ended or 4 differential channels. Sampling is not simultaneous.

Two 16-bit analog output channels complement the input functions, while 13 bidirectional digital channels provide digital signal access. USB bus power eliminates the need for a separate device power supply.

The supplied NI part-number records distinguish the enclosed USB-6003, 782608-01, from the USB-6003 OEM board-only kit, 782609-01. Confirm the required mechanical variant when specifying a system.

16-bit analog acquisition with a maximum sample rate of 100 kS/s.
Selectable input wiring configurations support up to 8 single-ended or 4 differential channels.
Two 16-bit analog output channels with a maximum listed update rate of 5 kS/s.
13 bidirectional digital channels and one counter/timer.
USB 2.0 connectivity with bus-powered operation.
2047-sample analog input FIFO buffer.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	13
Supported Power Input	Bus Powered
Maximum Number of Single-Ended Analog Input Channels	8
Number of Counters/Timers	1
Maximum Number of Differential Analog Input Channels	4
Analog Input Absolute Accuracy	26 mV
Analog Input FIFO Buffer Size	2047 samples
Maximum Sample Rate	100 kS/s
Simultaneous Sampling	No
Analog Input Resolution	16 bits
Bus Connector	USB 2.0
Number of Analog Output Channels	2
Maximum Analog Update Rate	5 kS/s
Reconfigurable	No
Number of Analog Input Channels	8
Operating Temperature Range	0 °C to 45 °C
Bus Connection	USB 2.0
Digital I/O Logic Levels	5 V
Maximum Clock Rate	10 MHz
Signaling Type	Single-Ended
Analog Input Voltage Range	-10 V to 10 V
Number of Voltage Output Channels	2
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	782608-01, 782609-01
