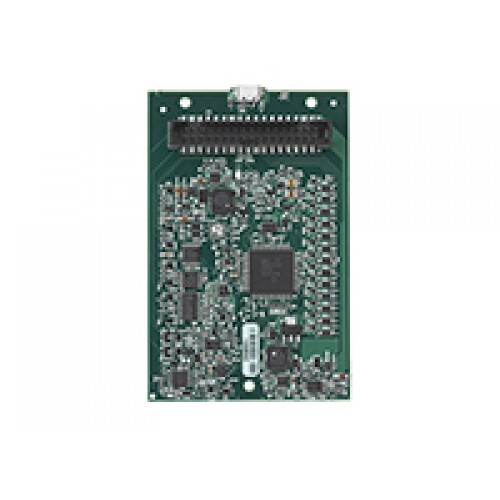

National Instruments USB-6001 OEM Board-only multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

USB-6001 OEM

The NI USB-6001 OEM, part number 782605-01, is the board-only version of the USB-6001 multifunction DAQ device. It combines analog input and output, 13 digital I/O lines and a 32-bit counter.

ManufacturerNational Instruments
ModelUSB-6001 OEM
Part Number782605-01
Product TypeBoard-only multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6001 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs8 single-ended or 4 differential
Input performance14-bit resolution; 20 kS/s maximum aggregate
Analog outputs2 channels; up to 5 kS/s per channel
Digital I/O13 individually configurable lines
CounterOne 32-bit edge counter
Integration connector34-pin
