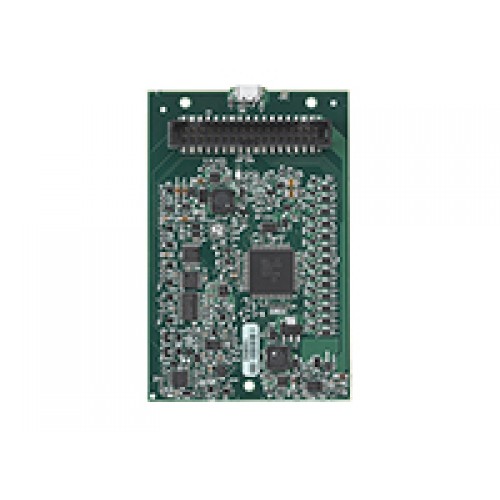

National Instruments USB-6002 OEM Board-level multifunction USB data acquisition device
1 image: Click to enlarge
National Instruments · USB DAQ

USB-6002 OEM

The NI USB-6002 OEM is a board-level multifunction USB DAQ device for integration into larger systems. It combines 16-bit analog acquisition at up to 50 kS/s aggregate with analog outputs, digital I/O and a counter.

ManufacturerNational Instruments
ModelUSB-6002 OEM
Part Number782607-01
Product TypeBoard-level multifunction USB data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6002 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs8 single-ended or 4 differential
Input resolution16-bit
Maximum acquisition rate50 kS/s aggregate
Analog outputs2 channels
Digital I/O13 bidirectional lines
Integration connector34-pin
