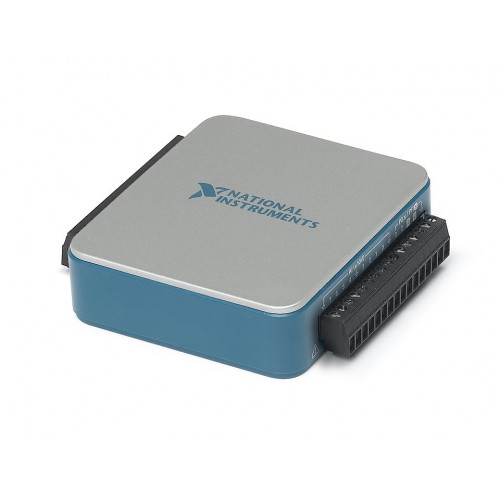

USB-6001, front view
USB-6001, front view additional viewUSB-6001, front view additional viewUSB-6001, front view additional viewUSB-6001, front view additional viewUSB-6001, front view additional view
7 images: additional views below.Click to enlarge
NI (National Instruments) · USB 2.0

USB-6001

The NI USB-6001 is a bus-powered USB multifunction I/O device with 8 analog inputs, 2 analog outputs, 13 bidirectional digital channels and one counter/timer. Its analog inputs provide 14-bit resolution at a maximum sample rate of 20 kS/s.

ManufacturerNI (National Instruments)
ModelUSB-6001
Part Number782604-01 · 782605-01
Product Type8 AI (14-Bit, 20 kS/s), 2 AO (5 kS/s/ch), 13 DIO USB Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6001

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels13
Supported Power InputBus Powered
Max Single-Ended Analog Input Channels8
Number of Counters/Timers1
Max Differential Analog Input Channels4
Analog Input Absolute Accuracy26 mV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6001 combines analog input, analog output, digital I/O and counter/timer functions in a USB-connected device. Its analog input configuration supports up to 8 single-ended channels or 4 differential channels, with 14-bit resolution and a maximum sample rate of 20 kS/s. Analog input sampling is not simultaneous.

Two 16-bit analog output channels complement the input functions, with a listed maximum update rate of 5 kS/s. The device also provides 13 bidirectional digital channels and one counter/timer. USB bus power supplies the device.

  • Analog input configuration supports 8 single-ended channels or 4 differential channels.
  • 14-bit analog input resolution with a maximum sample rate of 20 kS/s.
  • Two analog output channels with 16-bit resolution and a listed maximum update rate of 5 kS/s.
  • 13 bidirectional digital I/O channels and one counter/timer.
  • USB 2.0 interface with bus-powered operation.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels13
Supported Power InputBus Powered
Maximum Number of Single-Ended Analog Input Channels8
Number of Counters/Timers1
Maximum Number of Differential Analog Input Channels4
Analog Input Absolute Accuracy26 mV
Analog Input FIFO Buffer Size2047 samples
Maximum Sample Rate20 kS/s
Simultaneous SamplingNo
Analog Input Resolution14 bits
Bus ConnectorUSB 2.0
Number of Analog Output Channels2
Maximum Analog Update Rate5 kS/s
ReconfigurableNo
Number of Analog Input Channels8
Operating Temperature Range0 °C to 45 °C
Bus ConnectionUSB 2.0
Digital I/O Logic Levels5 V
Maximum Clock Rate10 MHz
Signaling TypeSingle-Ended
Analog Input Voltage Range-10 V to 10 V
Number of Voltage Output Channels2
Analog Output Voltage Range-10 V to 10 V
Analog Output Resolution16 bits
NI part numbers782604-01, 782605-01
