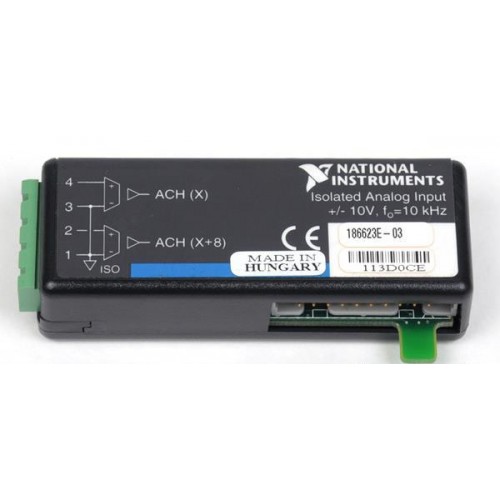

The NI SCC-AI03 conditions two voltage inputs for an external E/M Series DAQ device.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This SCC module provides voltage conditioning and filtering ahead of the DAQ device, rather than standalone digitization.
Verified product specifications.
| Input range | ±10 V |
|---|---|
| Output range | ±10 V |
| Gain | 1 V/V |
| Filter cutoff (−3 dB) | 10 kHz |
| Input impedance | 100 MΩ |
| Isolation topology | Bank isolation; channels are not mutually isolated |
| Maximum channel-to-earth working voltage | 42.4 Vpeak or 60 VDC, Measurement Category I |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Signal conditioning platform
Voltage input conditioning
SCC-AI03 → carrier → 68-pin E/M Series DAQ device
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Isolation is channel-to-ground and module-to-module only.
NI lists SCC-68 and SC-2345/2350 carriers.
