1 image: Click to enlarge

National Instruments · SCC

SCC-AI05

Name: SCC-AI05
Brand: National Instruments

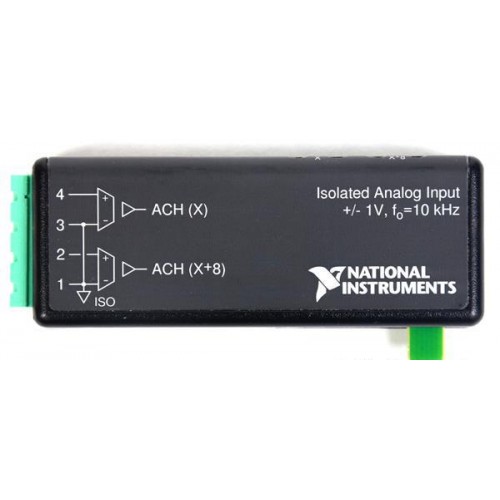

The SCC-AI05 conditions low-amplitude voltage signals through amplification, filtering, and isolation.

ManufacturerNational Instruments

ModelSCC-AI05

Product TypeIsolated analog input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-AI05

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels2 NRSE

Input range±1 V

Bandwidth10 kHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

It connects through an SCC carrier to a 68-pin E/M Series DAQ device.

10× voltage gain.
Three-pole lowpass filtering.
Removable four-pin screw terminal.

Verified specifications

Technical data

Verified product specifications.

Input range	±1 V
Output range	±10 V
Gain	10 V/V
Filter cutoff (−3 dB)	10 kHz
Input impedance	100 MΩ
Maximum channel-to-earth working voltage	42.4 Vpeak or 60 VDC; Measurement Category I

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCC

Signal conditioning

SCC-AI05

Analog input

Compatibility

Installs in analog input sockets on SC-2345/2350 or SCC-68 carriers.

The two channels share a reference; they are not isolated from each other.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCC-AI Series Isolated Analog Input Modules User Guide and SpecificationsUser Guide And Specifications · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this a matrix switch?

No. SCC-AI05 is an analog input signal-conditioning module.
