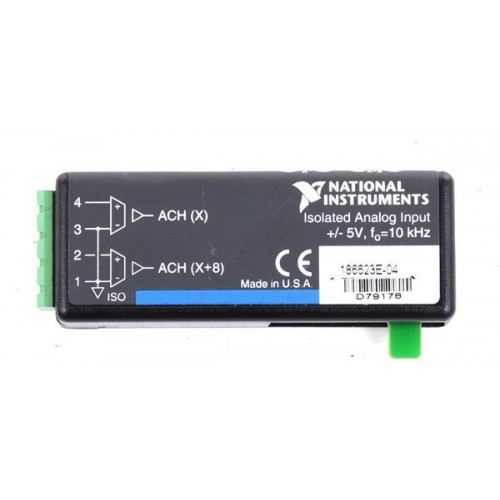

The NI SCC-AI04 conditions two analog voltage inputs for E/M Series DAQ systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This SCC module combines amplification, filtering and bank isolation ahead of the DAQ device.
Verified product specifications.
| Input channels | 2 NRSE |
|---|---|
| Input range | ±5 V |
| Output range | ±10 V |
| Gain | 2 V/V |
| −3 dB bandwidth | 10 kHz |
| Input impedance | 100 MΩ |
| Maximum channel-to-earth working voltage | 42.4 Vpeak or 60 VDC; Measurement Category I |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Signal conditioning
Analog input
SC-2345/2350 or SCC-68; requires the documented DAQ, cable and power configuration.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI documents SC-2345/2350 and SCC-68 analog-input sockets with a 68-pin E/M Series DAQ device.
No. NI identifies SCC-AI04 as a two-channel isolated analog input module.
