National Instruments · SCC

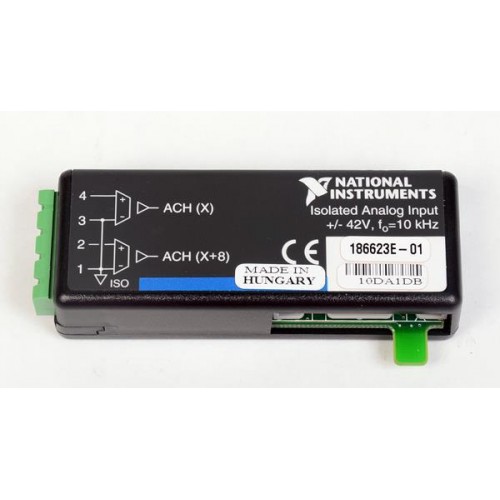

SCC-AI01

Name: SCC-AI01
Brand: National Instruments

The SCC-AI01 conditions two voltage inputs for E/M Series DAQ systems.

ManufacturerNational Instruments

ModelSCC-AI01

Product TypeIsolated analog input signal conditioning module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-AI01

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs2 NRSE channels

Range±42 V peak/DC

Bandwidth10 kHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Installed in an SCC carrier, this module attenuates and filters signals before DAQ measurement.

0.2 voltage gain.
Three-pole lowpass filter.
Removable four-pin screw terminal.

Verified specifications

Technical data

Verified product specifications.

Output range	±8.4 V
Input impedance	1 MΩ
Filter cutoff (−3 dB)	10 kHz
Isolation	Bank; channels share reference
Maximum working voltage, channel-to-earth	42.4 V peak or 60 VDC; Measurement Category I

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCC

Signal conditioning

SCC-AI01

Voltage input

Compatibility

Supports SCC-68 and SC-2345/2350 analog input sockets.

No isolation between channels. Not for Measurement Categories II, III or IV.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCC-AI Series Isolated Analog Input Modules User Guide and SpecificationsUser Guide And Specifications · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this a standalone DAQ device?

No. It requires a carrier and a 68-pin E/M Series DAQ device.

Are the channels individually isolated?

No. Isolation is per module, not between its channels.
