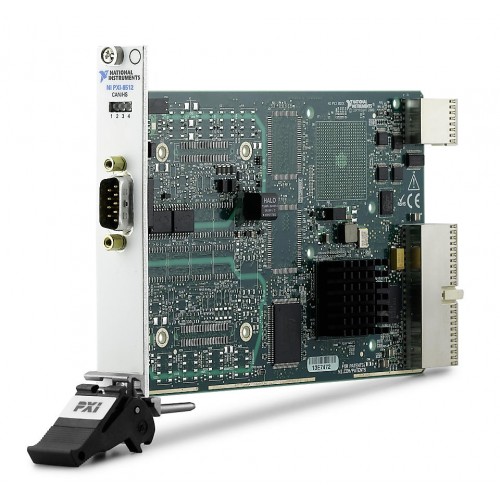

1 image: Click to enlarge

National Instruments · PXI

PXI-8512

Name: PXI-8512
Brand: National Instruments

The National Instruments PXI-8512 is a high-speed CAN and CAN FD interface module for NI-XNET applications. The model is offered in one- and two-port versions; confirm the installed variant before system integration.

ManufacturerNational Instruments

ModelPXI-8512

Product TypeCAN interface module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8512

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Network interfaceHigh-speed CAN / CAN FD

Bus connectionPXI Hybrid

DriverNI-XNET

Transceiver powerInternally powered

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-8512 brings CAN communication into the NI-XNET platform alongside PXI LIN and FlexRay interfaces. NI-XNET provides a common API for these networks and supports integration with LabVIEW and PXI modular instrumentation.

High-speed CAN and flexible data-rate communication.
Device-driven DMA transfers frames and signals without CPU interrupts.
Internally powered CAN physical layer.

Verified specifications

Technical data

Verified product specifications.

CAN physical layer	High-speed / Flexible Data-Rate
Manufacturer port variants	1 port: 780687-01; 2 ports: 780687-02
Bus connection	PXI Hybrid
External timing and triggering support	Yes
Operating temperature	0 to 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI / NI-XNET

Modular instrumentation platform and network API

PXI-8512

High-speed CAN interface

Related network interfaces

The PXI NI-XNET family also includes PXI-8513 CAN, PXI-8516 LIN, and PXI-8517 FlexRay interfaces.

Confirm the unit's port count and select an NI-XNET release appropriate to the host software environment.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-8512 Official Product PageProduct Page · ni.com

Open →

PXI-8512 Product CertificationsCertification Resource · ni.com

Open →

NI-XNET CAN, LIN, and FlexRay Platform OverviewTechnical resource

Open →

Differences Between the PXI-8512 and the PXI-8513Technical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PXI-8512 the same as the PXI-8513?

No. The PXI-8512 is a high-speed CAN interface. The PXI-8513 adds software-selectable physical-layer options, including low-speed/fault-tolerant and single-wire CAN. NI advises checking each device's specifications rather than assuming interchangeability.

Does the PXI-8512 CAN transceiver require an external power supply?

NI lists the PXI-8512 high-speed CAN physical layer as internally powered.

Which software driver supports the PXI-8512?

The PXI-8512 uses NI-XNET. Check the selected driver's release documentation for operating-system and development-environment support.
