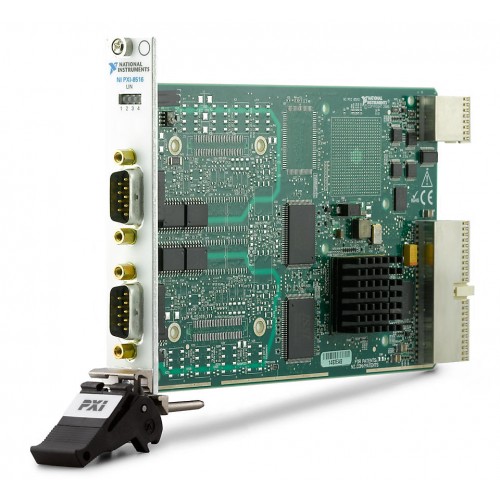

The NI PXI-8516 is a two-port PXI LIN interface module for NI-XNET applications, supporting real-time manipulation of LIN frames and signals.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-8516 provides a Local Interconnect Network interface for applications developed with the NI-XNET driver. Its two LIN ports and PXI Hybrid bus connection place LIN communication within a modular test and control system.
The NI-XNET device-driven DMA engine transfers LIN frames and signals between the interface and the user program without CPU interrupts, minimizing message latency and freeing host processor time for models and applications.
Verified product specifications.
| Reconfigurable | No |
|---|---|
| Bus Connection | PXI Hybrid |
| Number of LIN Ports | 2 |
| Operating Temperature Range | 0 °C to 55 °C |
| Supports External Timing And Triggering | Yes |
| Maximum Baud Rate | 20 kbits/s |
| Conformal Coated | No |
| Enclosed | Yes |
| LIN Physical Layer | LIN 2.2, LIN 2.0, LIN 2.1 |
| NI part numbers | 781366-01 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Bus Connection
This product
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The listed NI part number is 781366-01, identified in the supplied catalog data as the PXI-8516/2 NI-XNET LIN interface with two ports.
It has two LIN ports and a maximum baud rate of 20 kbit/s.
The PXI-8516 supports LIN 2.0, LIN 2.1 and LIN 2.2 physical layers.
Yes. External timing and triggering support is included in the preserved verified specifications.
