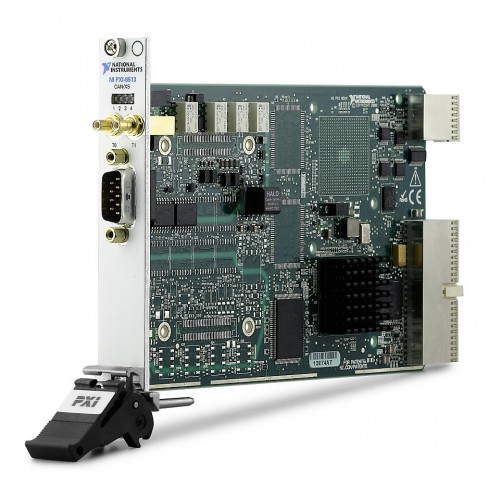

The NI PXI-8513 is a software-selectable CAN interface for PXI systems using the NI-XNET driver.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-8513 combines multiple CAN physical-layer options in a software-selectable interface. Compared with the high-speed CAN PXI-8512, it adds low-speed/fault-tolerant and single-wire capabilities.
NI identifies hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, and automation control as relevant applications.
Verified product specifications.
| Number of CAN ports | 1 port |
|---|---|
| CAN physical layers | Software-selectable; high-speed, flexible data-rate, low-speed/fault-tolerant, single-wire |
| Bus connection | PXI Hybrid |
| Operating temperature | 0 to 55 °C |
| External timing and triggering | Supported |
| High-speed CAN termination | Software-controlled, 120 Ω between CAN_H and CAN_L |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
CAN interface driver and programming ecosystem
Software-selectable CAN interface
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The PXI-8512 is a high-speed CAN FD interface. The PXI-8513 adds software-selectable low-speed/fault-tolerant and single-wire CAN capabilities. NI recommends checking both devices' specifications against the application requirements.
Yes. In high-speed mode, the NI-XNET Interface:CAN:Termination property enables or disables the 120 Ω resistor between CAN_H and CAN_L.
Yes. NI lists an external 8–18 V supply for PXI-8513 single-wire operation.
