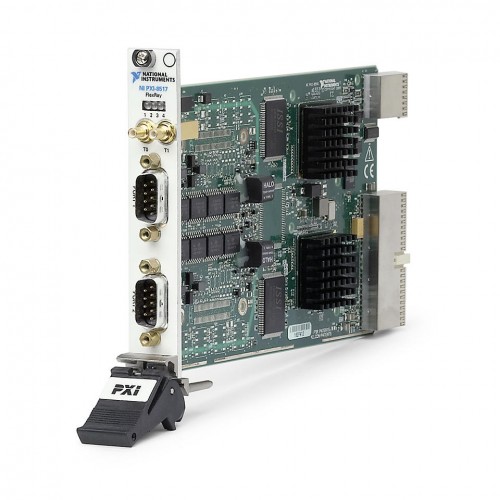

National Instruments PXI-8517 2-port PXI FlexRay interface module
1 image: Click to enlarge
National Instruments · PXI

PXI-8517

The National Instruments PXI-8517 is a two-port FlexRay interface module in the NI-XNET family. It provides FlexRay connectivity for PXI-based development and test systems.

ManufacturerNational Instruments
ModelPXI-8517
Part Number780689-02
Product Type2-port PXI FlexRay interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8517

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
NetworkFlexRay
Interfaces2
Bus connectionPXI Hybrid
Maximum baud rate10 Mbit/s
Bus powerInternally powered
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The two FlexRay interfaces can operate on separate networks or support connection to an individual ECU when other cold-start nodes are unavailable.

NI-XNET provides a common programming API for its CAN, LIN, and FlexRay interfaces. The platform supports frame- and signal-oriented development with tools including LabVIEW and C/C++.

  • Two independently usable FlexRay interfaces.
  • Support for external timing and triggering.
  • Internal power eliminates an external bus-power supply requirement for the module.
  • NI-XNET software provides APIs, bus-monitoring utilities, and signal-database tools.
Verified specifications

Technical data

Verified product specifications.

FlexRay interface count2 ports
Bus connectionPXI Hybrid
Maximum baud rate10 Mbit/s
Operating temperature0 to 55 °C
External timing and triggeringSupported
Bus-power sourceInternal
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Hardware platform

NI-XNET

Interface family and software API

PXI-8517

FlexRay network interface

Check chassis slot suitability, software-version support, and FlexRay wiring before integration.
