PCI-6052E

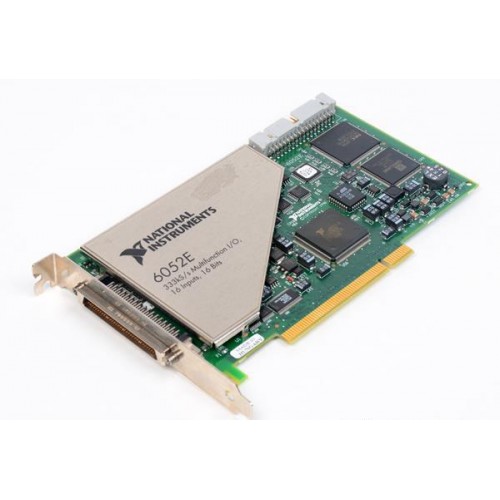

The National Instruments PCI-6052E is a multifunction PCI data acquisition card with 16-bit analog input at up to 333 kS/s. It combines 16 analog inputs, two analog outputs, eight digital I/O lines, and two counter/timers.

ManufacturerNational Instruments

ModelPCI-6052E

Part Number777745-01

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6052E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPCI, E Series

Analog input16 channels, 16-bit resolution

Maximum sampling rate333 kS/s

Analog outputTwo channels

Digital I/OEight lines

CountersTwo 24-bit counter/timers

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6052E belongs to NI's E Series multifunction DAQ family. Its combination of analog acquisition, analog output, digital I/O, and counters provides several measurement and control functions on one PCI card.

NI identifies laboratory automation, research, design verification, and manufacturing test as applications for this device. SCC or SCXI signal conditioning can extend its measurement capabilities; the specific conditioning configuration must be checked for the intended signals.

Software-selectable analog input configuration: 16 single-ended or eight differential channels.
Bipolar and unipolar analog input ranges for different voltage levels.
Two analog output channels alongside analog input acquisition.
Eight digital I/O lines and two counter/timers for mixed-signal DAQ tasks.

Verified specifications

Technical data

Verified product specifications.

Host interface	PCI
Analog input channels	16 single-ended or 8 differential
Analog input resolution	16 bit
Maximum analog input sampling rate	333 kS/s
Bipolar analog input ranges	±10, ±5, ±2.5, ±1, ±0.5, ±0.25, ±0.1, ±0.05 V
Unipolar analog input ranges	0–10, 0–5, 0–2, 0–1, 0–0.5, 0–0.2, 0–0.1 V
Analog output channels	2
Analog output resolution	16 bit
Maximum analog output update rate	333 kS/s
Digital I/O lines	8
Digital I/O logic compatibility	5 V TTL/CMOS
Counter/timers	2 counters, 24-bit

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

E Series

Multifunction DAQ family

PCI-6052E

PCI multifunction data acquisition card

Signal conditioning

NI identifies SCC and SCXI as signal-conditioning options.

Verify the complete host, driver, cable, and signal-conditioning configuration before integration.
