National Instruments · PCI

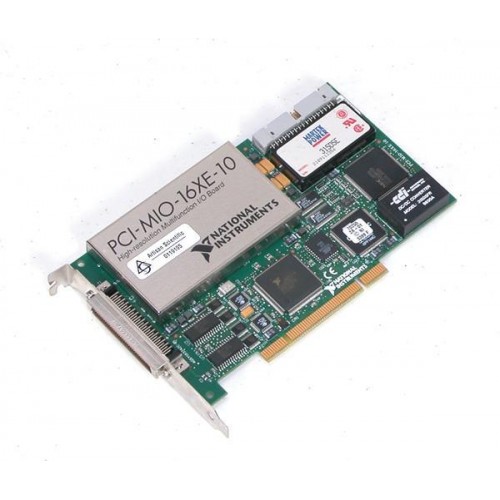

PCI-6030E / PCI-MIO-16XE-10

The National Instruments PCI-6030E, also identified as PCI-MIO-16XE-10, is a multifunction PCI DAQ card with 16-bit analog input and a maximum single-channel sampling rate of 100 kS/s. It also provides two analog outputs, eight digital I/O lines and two counter/timers.

ManufacturerNational Instruments

ModelPCI-6030E / PCI-MIO-16XE-10

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6030E / PCI-MIO-16XE-10

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPCI E Series

Analog input16 channels, 16-bit resolution

Maximum sampling rate100 kS/s, single-channel

Analog output2 channels

Digital and timing I/O8 digital I/O lines; 2 counter/timers

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This E Series card combines analog acquisition, analog output, digital I/O and counter/timer functions on the PCI platform. NI's historical driver documentation explicitly identifies PCI-MIO-16XE-10 as PCI-6030E, supporting the catalog's dual-model designation.

Analog inputs support 16 single-ended or 8 differential channels. For multichannel acquisition, use the manufacturer's settling-time requirements rather than treating the maximum single-channel sampling rate as a per-channel rate.

16-bit analog acquisition with 16 input channels.
Two analog output channels alongside acquisition functions.
Eight digital I/O lines and two counter/timers.
Analog and digital triggering.

Verified specifications

Technical data

Verified product specifications.

Analog input configuration	16 single-ended or 8 differential channels
Analog input resolution	16 bit
Maximum single-channel sampling rate	100 kS/s
Analog output channels	2 channels
Analog output resolution	16 bit
Digital I/O lines	8 lines
Counter/timers	2 channels
Counter/timer resolution	24 bit

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI E Series

Hardware platform and DAQ family

PCI-MIO-16XE-10 / PCI-6030E

Multifunction DAQ card

Compatibility

PCI-MIO-16XE-10 is listed as a supported PCI E Series device in the NI-DAQmx 18.0 Readme. Check that release's operating-system and application requirements separately.

Check driver support using the PCI-MIO-16XE-10 designation; do not confuse this PCI card with PXI-6030E.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6030E/6031E/6032E/6033E Family SpecificationsSpecifications PDF · download.ni.com

Open →

NI-DAQ 7.1 ReadmeHistorical Driver Documentation And Model Identification · download.ni.com

Open →

NI-DAQmx 18.0 ReadmeVersion-specific Hardware And Software Support · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Are PCI-6030E and PCI-MIO-16XE-10 the same model designation?

NI's NI-DAQ 7.1 Readme lists the device as PCI-MIO-16XE-10 (PCI-6030E), explicitly linking the two names.

Does 100 kS/s apply to every input channel?

No. NI specifies 100 kS/s as the maximum single-channel rate and directs users to the settling-time table for multichannel rates.

Is NI-DAQmx support documented?

The NI-DAQmx 18.0 Readme lists PCI-MIO-16XE-10 under supported PCI E Series devices. This is version-specific evidence, not confirmation of support in every driver or operating-system release.
