PCI-6036E

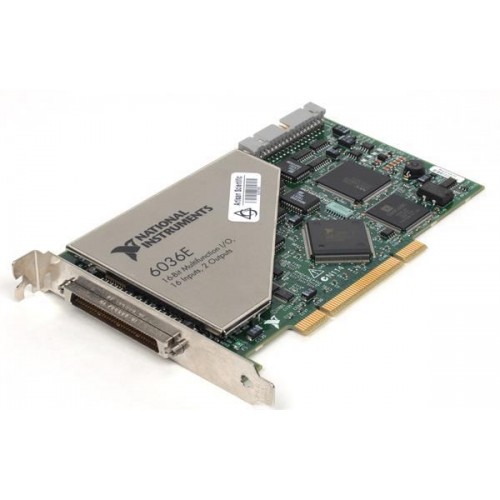

The National Instruments PCI-6036E is a multifunction PCI DAQ card with 16-bit analog input at up to 200 kS/s. It combines analog acquisition, two analog outputs, eight digital I/O lines, and two counter/timers.

ManufacturerNational Instruments

ModelPCI-6036E

Part Number778465-01 · 187857-01

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6036E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPCI, E Series

Analog inputs16 single-ended or 8 differential

Input performance16-bit resolution; 200 kS/s maximum

Analog outputs2 channels, 16-bit

Digital and timing I/O8 digital I/O lines; 2 × 24-bit counter/timers
