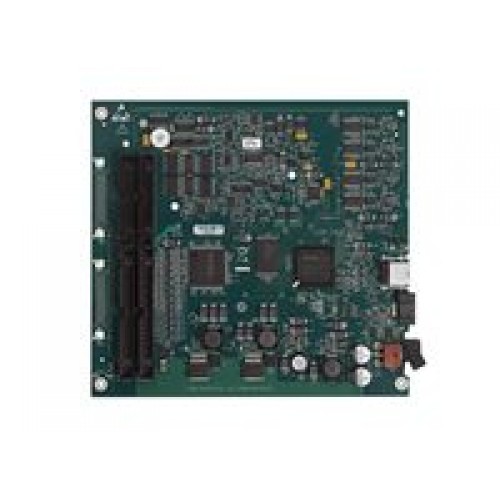

National Instruments USB-6363 OEM OEM multifunction data acquisition board
1 image: Click to enlarge
National Instruments · USB

NI USB-6363 OEM

The NI USB-6363 OEM is a board-level X Series USB multifunction DAQ device with 32 analog inputs, four analog outputs, 48 digital I/O lines and four 32-bit counters/timers.

ManufacturerNational Instruments
ModelUSB-6363 OEM
Part Number782257-01
Product TypeOEM multifunction data acquisition board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6363 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs32 single-ended or 16 differential; 16-bit
Input sampling2 MS/s single-channel; 1 MS/s aggregate multichannel
Analog outputs4 channels; 16-bit
Digital I/O48 lines
OEM connections34-pin analog and 50-pin digital connectors
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This OEM version provides USB-6363 functionality in a board-only format rather than an enclosed instrument. NI identifies the OEM board-only kit as part number 782257-01.

For mechanical and wiring integration, use the OEM user guide: it includes USB-6363 OEM connector pinouts, mounting information and dimensional exceptions to the main USB-6363 specifications.

  • Analog input ranges from ±0.1 V to ±10 V.
  • Port 0 supports hardware-timed digital waveform acquisition and generation on up to 32 lines.
  • NI-STC3 timing provides independent analog and digital timing engines and retriggerable measurement tasks.
  • Uses the NI-DAQmx driver for application development.
Verified specifications

Technical data

Verified product specifications.

Analog input channels32 single-ended or 16 differential
Analog input resolution16 bit
Maximum single-channel input sample rate2 MS/s
Maximum aggregate multichannel input sample rate1 MS/s
Analog output channels4
Analog output resolution16 bit
Maximum analog output update rate2.86 with one channel; 2.00 with two; 1.54 with three; 1.25 with four MS/s
Digital I/O lines48
Counters/timers4 counters, 32-bit resolution
EnclosureNone; OEM board-only format
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB X Series

Multifunction DAQ platform

USB-6363 OEM

Board-level DAQ device

Driver

The OEM guide specifies NI-DAQmx 9.5 and later; verify operating-system support for the selected driver release.

Use the OEM pinouts and mechanical drawings, not the enclosed USB-6363 connector layouts.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-634x/635x/636x OEM User GuideOEM User Guide · download.ni.com
Open →
USB-6363 SpecificationsSpecifications; Use With OEM Addendum · ni.com
Open →
USB-6363 Dimensional DrawingsMechanical Drawings And CAD; Select 782257-01 · ni.com
Open →
USB-6363 OEM mechanical drawings and CAD files: select 782257-01Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6363View product →
Related model
USB-6361 OEMView product →
Related model
USB-6343 OEMView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the USB-6363 OEM an enclosed USB device?

No. NI identifies part number 782257-01 as the OEM board-only kit.

Does it sample every analog input at 2 MS/s?

No. The maximum is 2 MS/s for a single channel and 1 MS/s aggregate for multichannel acquisition.

Where are the OEM wiring and mounting details?

The USB-634x/635x/636x OEM User Guide includes the USB-6363 OEM connector pinout, mounting information and PCB dimensional information.
