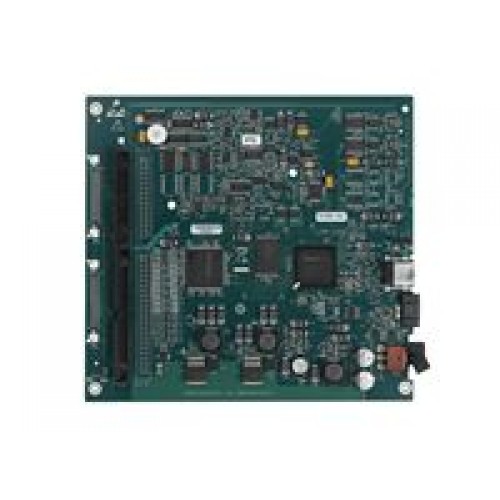

National Instruments USB-6361 OEM Board-level multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

NI USB-6361 OEM

The NI USB-6361 OEM is a board-level X Series USB DAQ device with 16 analog inputs, two analog outputs, 24 digital I/O lines, and four 32-bit counters/timers.

ManufacturerNational Instruments
ModelUSB-6361 OEM
Part Number782254-01
Product TypeBoard-level multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6361 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog input16 single-ended or 8 differential channels
Resolution16-bit analog input and output
Digital I/O24 bidirectional lines
Signal connections34-pin analog and 50-pin digital connectors
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This OEM version provides board-level access for equipment integration rather than an enclosed desktop DAQ format. Its connector pinout and mounting information are documented in NI's OEM user guide.

  • Analog input acquisition up to 2 MS/s.
  • Two analog outputs with a maximum update rate of 2.86 MS/s.
  • NI-STC3 timing with independent analog and digital timing engines.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
Analog input resolution16 bits
Maximum analog input sample rate2 MS/s
Analog input ranges±0.1, ±0.2, ±0.5, ±1, ±2, ±5, ±10 V
Analog output channels2
Analog output resolution16 bits
Maximum analog output update rate2.86 MS/s
Digital I/O lines24
Counters/timers4, each 32-bit
OEM signal connectors34-pin analog; 50-pin digital
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

X Series USB

DAQ family and host interface

USB-6361 OEM

Board-level multifunction DAQ

Driver

NI-DAQmx; the OEM guide specifies version 9.5 or later.

Install inside a suitable enclosure before use. Check the OEM pinout before designing signal wiring.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-634x/635x/636x OEM User GuideOEM User Guide · download.ni.com
Open →
NI USB-6361 Product PageManufacturer Product Page · ni.com
Open →
USB-6361 Dimensional Drawings and CAD ModelsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6361View product →
Related model
USB-6363 OEMView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the USB-6361 OEM enclosed?

No. It is a board-level device and must be installed inside a suitable enclosure before use.

Where is the OEM connector pinout?

Figure 9 of the OEM user guide identifies the USB-6361 OEM's 34-pin analog and 50-pin digital connector signals.
