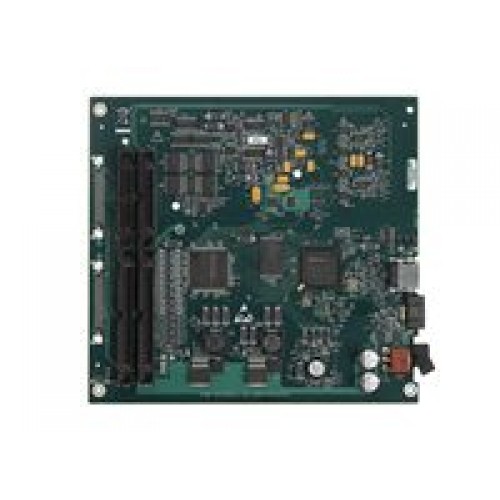

National Instruments USB-6343 OEM Board-level multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

NI USB-6343 OEM

The NI USB-6343 OEM is a board-level X Series USB DAQ device for equipment integration. It combines analog acquisition, voltage output, digital I/O and counter/timer functions.

ManufacturerNational Instruments
ModelUSB-6343 OEM
Part Number782252-01
Product TypeBoard-level multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6343 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs32 single-ended or 16 differential
Acquisition16-bit, up to 500 kS/s aggregate
Analog outputs4 channels, 16-bit
Digital I/O48 bidirectional lines
OEM connectorsTwo 34-pin and two 50-pin headers
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This OEM version provides the USB-6343 functionality without an enclosure, using board-level connections rather than the enclosed model's terminal arrangement.

The OEM guide supplies connector pinouts, PCB dimensions and mounting details. Use it alongside the USB-6343 electrical specifications when designing the enclosure, wiring and power connections.

  • Selectable analog input ranges of ±0.2, ±1, ±5 and ±10 V.
  • Four 32-bit counters/timers support pulse, encoder and frequency tasks.
  • NI-STC3 provides independent analog and digital timing engines.
  • Five mounting holes support installation in a customer chassis.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration32 single-ended or 16 differential
Analog input resolution16 bit
Maximum analog input sample rate500 single-channel or multichannel aggregate kS/s
Analog output channels4
Analog output resolution16 bit
Analog output range±10 V
Maximum analog output update rate900 with one channel; 840 per channel with two; 775 per channel with three; 719 per channel with four kS/s
Digital I/O lines48
Counters/timers4, each 32-bit
PCB dimensions175.3 × 162.6 mm
OEM device weight167 g
External power requirement11–30 V DC, 30 W
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

X Series USB

DAQ family and host interface

USB-6343 OEM

Board-level multifunction DAQ device

Driver

NI-DAQmx; the OEM guide specifies support starting with version 9.5.

Use OEM-specific pinouts and mechanical drawings; enclosed USB-6343 dimensions and terminal layouts do not describe this board.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-6343 Product Page and OEM Variant DetailsProduct Page · ni.com
Open →
USB-634x/635x/636x OEM User GuideOEM Integration Guide · download.ni.com
Open →
USB-6343 Specifications — Use with OEM AddendumSpecifications · ni.com
Open →
OEM Connector Pinouts, Mounting Details and PCB DrawingsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6343View product →
Related model
USB-6341 OEMView product →
Related model
USB-6363 OEMView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this the enclosed USB-6343?

No. The OEM version is a board-only design with generic I/O headers, intended for integration into equipment.

Can all four analog outputs run at 900 kS/s?

No. The 900 kS/s maximum applies to one output channel. With all four channels updating, the maximum is 719 kS/s per channel.

Does the board need external power?

Yes. The OEM guide specifies an external 11–30 V DC, 30 W supply.
