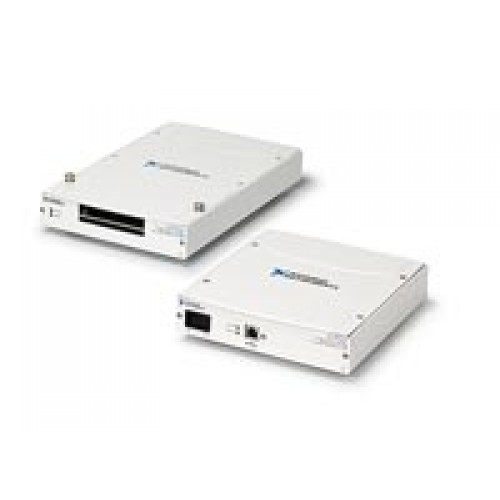

National Instruments USB-6251 Mass Term Multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

NI USB-6251 Mass Term

The NI USB-6251 Mass Term is an M Series multifunction USB DAQ device combining analog input, analog output, digital I/O and counters. This variant routes signals through a 68-pin mass-termination connector.

ManufacturerNational Instruments
ModelUSB-6251 Mass Term
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6251 Mass Term

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 channels, 16-bit resolution
Maximum AI sampling1.25 MS/s single channel; 1.00 MS/s multichannel aggregate
Analog outputs2 channels, 16-bit resolution
Digital I/O24 lines
Counters/timers2 counters, 32-bit resolution
Signal connection68-pin SCSI mass termination
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6251 combines voltage acquisition, analog output, digital I/O and counter/timer functions in a USB-connected M Series device. NI identifies laboratory automation, research, design verification and manufacturing test as applications.

Mass termination distinguishes this version from the USB-6251 BNC and screw-terminal variants. Signal wiring uses an external cable and accessory rather than direct onboard terminals; select connectivity using NI's 62xx cable and accessory guide.

  • 16-bit analog acquisition with up to 1.25 MS/s single-channel sampling.
  • Two analog outputs with maximum updates of 2.86 MS/s for one channel or 2.00 MS/s per channel with two channels.
  • 24 digital I/O lines, with waveform functionality on the eight Port 0 lines.
  • Two 32-bit counters/timers and digital triggering.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 channels
Analog input resolution16 bits
Maximum single-channel AI sample rate1.25 MS/s
Maximum multichannel AI aggregate sample rate1.00 MS/s
Analog output channels2 channels
Analog output resolution16 bits
Maximum AO update rate, one channel2.86 MS/s
Maximum AO update rate, two channels2.00 per channel MS/s
Digital I/O24 total; 8 Port 0 waveform-capable lines lines
Counters/timers2, each with 32-bit resolution
Signal connector68-pin SCSI 0.050 D-Type
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series / USB

DAQ family and host interface

USB-6251 Mass Term

Multifunction DAQ with external signal connectivity

Driver family

NI-DAQmx

Use the mass-termination pinout and connector-specific accessory guide; BNC and screw-terminal variants use different signal connections.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-6251 Product OverviewManufacturer Product Page · ni.com
Open →
M Series User Manual — USB-6251 Mass Termination PinoutUser Manual · docs-be.ni.com
Open →
62xx Multifunction I/O Cable and Accessory CompatibilityAccessory Guide · ni.com
Open →
USB-6251 Dimensional DrawingsDimensional Drawings · ni.com
Open →
NI 625x Family Specifications in USB M Series Data SheetTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI USB-6251 BNCView product →
Related model
NI USB-6251 Screw TerminalView product →
Related model
NI USB-6259 Mass TermView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

What does Mass Term mean on the USB-6251?

It identifies the mass-termination variant, which uses a 68-pin signal connector and external cabling rather than direct BNC or screw-terminal signal connections.

Can both analog outputs update at 2.86 MS/s?

No. The specified maximum is 2.86 MS/s for one output channel and 2.00 MS/s per channel when using two output channels.
