National Instruments PXI-6070E Multifunction data acquisition module

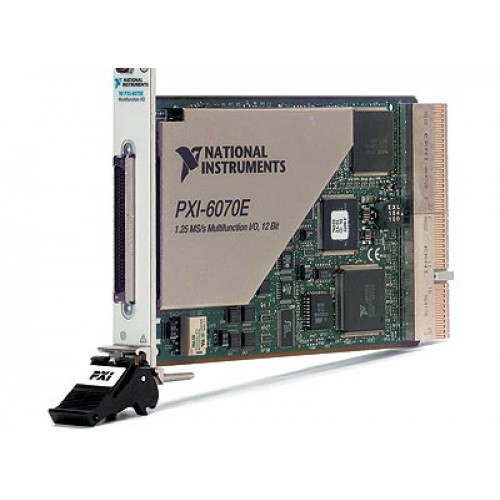

1 image: Click to enlarge
National Instruments · PXI

PXI-6070E

The National Instruments PXI-6070E is a multifunction PXI DAQ module with 16 analog inputs, 12-bit resolution and a maximum sampling rate of 1.25 MS/s. It also provides two analog outputs, eight digital I/O lines and two counter/timers.

ManufacturerNational Instruments
ModelPXI-6070E
Product TypeMultifunction data acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6070E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input resolution12-bit
Maximum sampling rate1.25 MS/s
Analog outputs2 channels
Digital I/O8 lines
Counter/timers2 × 24-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6070E combines analog acquisition, analog output, digital I/O and counter/timer functions in a PXI module. NI lists this model in its NI-DAQmx 8.1 supported-device documentation.

NI identifies laboratory automation, research, design verification and manufacturing test as applications for the PXI-6070 product. Its product page also describes extending measurement capability with SCC or SCXI signal conditioning.

The PXI-6070E combines analog acquisition, analog output, digital I/O and counter/timer functions in a PXI module. NI identifies laboratory automation, research, design verification and manufacturing test as application areas for this product.

Analog input configuration is software-selectable, with single-ended and differential options. The official family specification includes the PXI-6070E pinout, input ranges, electrical limits and model-specific physical information.

  • 12-bit analog acquisition at up to 1.25 MS/s.
  • Software-selectable single-ended or differential input configuration.
  • Two analog output channels alongside eight digital I/O lines.
  • Two 24-bit counter/timers.
  • DMA, interrupt and programmed I/O data transfers.
  • Combines analog input and output, digital I/O and counter/timer functions.
  • Provides 12-bit analog acquisition at sampling rates up to 1.25 MS/s.
  • Supports software-selectable single-ended or differential analog inputs.
  • Includes two 24-bit counters/timers.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration16 single-ended or 8 differential
Analog input resolution12 bit
Maximum analog input sampling rate1.25 MS/s
Analog output channels2 channels
Digital I/O lines8 lines
Counter/timers2
Counter resolution24 bit
Input couplingDC
Analog input FIFO512 samples
I/O connector68-pin male 0.050 D-type
Dimensions excluding connectors16 × 10 cm
Weight203 g
