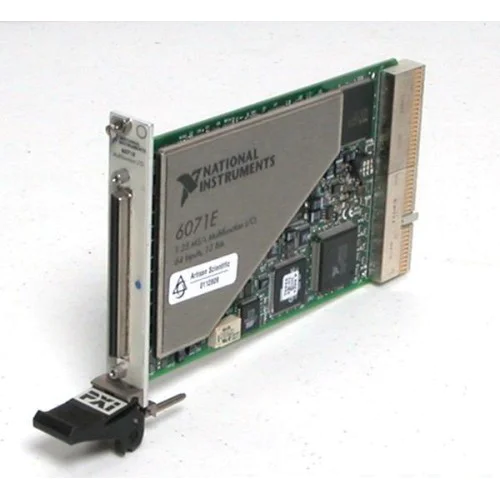

National Instruments PXI-6071E Multifunction data acquisition module
1 image: Click to enlarge
National Instruments · PXI

PXI-6071E

The National Instruments PXI-6071E is a multifunction PXI data acquisition module with 64 analog inputs, 2 analog outputs, 8 digital I/O lines and two counter/timers. Its analog input system provides 12-bit resolution and a maximum sampling rate of 1.25 MS/s.

ManufacturerNational Instruments
ModelPXI-6071E
Part Number777676-01 · 184805-01
Product TypeMultifunction data acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6071E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs64 single-ended or 32 differential
Analog input performance12-bit resolution; 1.25 MS/s maximum sampling rate
Analog outputs2 channels
Digital I/O8 lines
Counter/timers2 × 24-bit
I/O connector100-pin female 0.050-inch D-type
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6071E combines analog acquisition, analog output, digital I/O and timing functions in a PXI module. NI identifies laboratory automation, research, design verification and manufacturing test as application areas.

Analog input channel configuration is software-selectable. Multichannel scan planning should account for the settling-time requirements documented in the family specifications rather than treating the maximum sampling rate as a per-channel rate.

  • Combines analog I/O, digital I/O and counter/timer functions.
  • Software-selectable single-ended and differential analog input configurations.
  • Selectable bipolar and unipolar analog input ranges.
  • Supports DMA, interrupt and programmed I/O data transfers.
Verified specifications

Technical data

Verified product specifications.

Analog input channels64 single-ended or 32 differential
Analog input resolution12 bit
Maximum analog input sampling rate1.25 MS/s
Analog input couplingDC
Analog input FIFO512 samples
Analog output channels2 channels
Digital I/O lines8 lines
Counter/timers2 up/down counter/timers, 24-bit resolution
I/O connector100-pin female 0.050-inch D-type
Dimensions excluding connectors16 × 10 cm
Weight214 g
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Instrumentation platform

PXI-6071E

Multifunction DAQ module

Historical driver support

NI-DAQmx 8.3 lists the PXI-6071E among supported devices.

Check the intended driver and operating-system combination separately; historical driver support does not establish support in current releases.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-6071 Product PageOfficial Product Page · ni.com
Open →
NI 6070E/6071E Family SpecificationsSpecifications And Pinout PDF · download.ni.com
Open →
NI-DAQmx 8.3 ReadmeHistorical Driver Support Documentation · download.ni.com
Open →
Family Specifications: Electrical Characteristics and NI 6071E PinoutTechnical resource
Open →
