National Instruments PXI-6040E Multifunction DAQ module

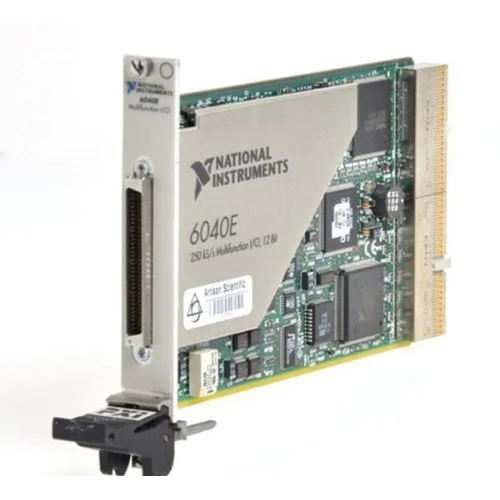

1 image: Click to enlarge
National Instruments · PXI

PXI-6040E

The National Instruments PXI-6040E is a 12-bit multifunction DAQ module with 16 analog inputs, two analog outputs, eight digital I/O lines and two counter/timers. Maximum analog input sampling is 500 kS/s for single-channel scanning and 250 kS/s for multichannel scanning.

ManufacturerNational Instruments
ModelPXI-6040E
Part Number777484-01
Product TypeMultifunction DAQ module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6040E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
AI resolution12-bit
Maximum AI sampling500 kS/s single-channel; 250 kS/s multichannel
Analog outputs2 voltage channels
Digital I/O8 lines
