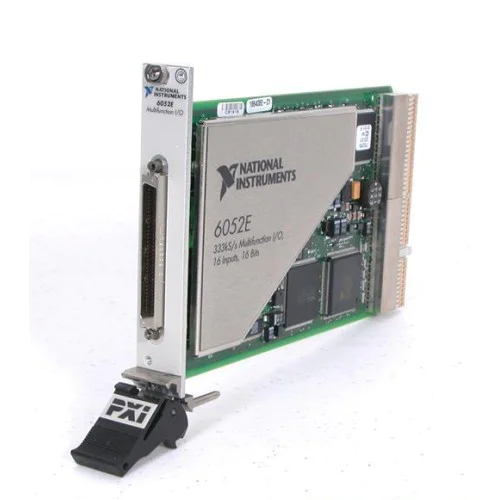

National Instruments PXI-6052E Multifunction data acquisition module
1 image: Click to enlarge
National Instruments · PXI

PXI-6052E

The National Instruments PXI-6052E is an E Series multifunction DAQ module combining 16-bit analog acquisition with analog output, digital I/O and counter/timer functions.

ManufacturerNational Instruments
ModelPXI-6052E
Part Number777962-01
Product TypeMultifunction data acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6052E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input resolution16-bit
Maximum sampling rate333 kS/s
Analog outputs2
Digital I/O8 lines
Counters/timersTwo 24-bit counters
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6052E brings analog I/O, digital I/O and timing functions into a PXI measurement system. NI identifies laboratory automation, research, design verification and manufacturing test as relevant applications.

NI documents SCC and SCXI signal conditioning as options for adding sensor and high-voltage measurement capability. Select the signal-conditioning hardware and interconnects for the intended measurement rather than connecting those signals directly to the DAQ input.

  • Software-selectable single-ended or differential analog inputs.
  • Bipolar and unipolar input ranges.
  • Analog and digital triggering.
  • PXI trigger bus and star-trigger support.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
Analog input resolution16 bit
Maximum analog input sampling rate333 kS/s
Analog output channels2
Digital I/O lines8
Counters/timers2
Counter resolution24 bit
I/O connector68-pin male SCSI-II type
Operating temperature0 to 55 °C
Dimensions excluding connectors16 × 10 cm
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Measurement platform

PXI-6052E

Multifunction DAQ module

Signal conditioning

NI documents SCC and SCXI options.

Check the exact chassis, driver version, operating system and cabling before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6052E Family SpecificationsSpecifications And Pinout · download.ni.com
Open →
NI PXI-6052 Product PageOfficial Product Page · ni.com
Open →
NI-DAQmx 8.3 ReadmeHistorical Driver Support Reference · download.ni.com
Open →
NI 6052E Specifications and I/O PinoutTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PXI-6040EView product →
Related model
PXI-6070EView product →

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many differential inputs does the PXI-6052E provide?

It supports 8 differential inputs or 16 single-ended inputs.

Does it include output and counter functions?

Yes. It includes 2 analog outputs, 8 digital I/O lines and two 24-bit counters/timers.

Why does the official product page say PXI-6052?

NI uses PXI-6052 as the page heading, but its description for part number 777962-01 explicitly identifies PXI-6052E.
