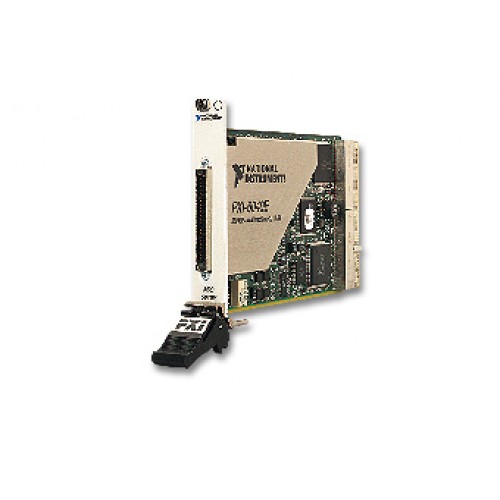

NI PXI-6040E

Name: NI PXI-6040E
Brand: National Instruments

The NI PXI-6040E is a PXI multifunction DAQ module with 16 analog inputs, two analog outputs, eight digital I/O lines and two counters/timers. Its 12-bit analog input supports up to 500 kS/s for one channel or 250 kS/s for multichannel scanning.

ManufacturerNational Instruments

ModelPXI-6040E

Part Number777484-01

Product TypeMultifunction data acquisition module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6040E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI multifunction I/O

Analog input16 single-ended or 8 differential; 12-bit

Maximum AI sampling500 kS/s single-channel; 250 kS/s multichannel

Analog output2 channels

Digital I/O8 lines

Counters/timers2 × 24-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6040E combines analog acquisition, analog output, digital I/O and counter/timer functions in a PXI module. NI identifies laboratory automation, research, design verification and manufacturing test as applications for this product.

When planning acquisition, distinguish the 500 kS/s single-channel limit from the 250 kS/s multichannel scanning limit. The single-channel maximum should not be treated as a per-channel multichannel rate.

Software-selectable single-ended or differential analog inputs.
Two analog output channels complement analog acquisition.
Eight digital I/O lines and two counters/timers.
Analog and digital triggering with PXI trigger-bus support.

Verified specifications

Technical data

Verified product specifications.

Analog input configuration	16 single-ended or 8 differential
Analog input resolution	12 bit
Maximum single-channel AI sampling rate	500 kS/s
Maximum multichannel AI scanning rate	250 kS/s
Bipolar analog input ranges	±10, ±5, ±2.5, ±1, ±0.5, ±0.25, ±0.1, ±0.05 V
Analog output channels	2
Analog output resolution	12 bit
Digital I/O lines	8
Digital I/O logic compatibility	5 V TTL
Counters/timers	2; 24-bit
I/O connector	68-pin male 0.050 D-type
Dimensions excluding connectors	16 × 10 cm

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6040E

Multifunction DAQ module

Driver evidence

NI-DAQmx 8.3 lists the PXI-6040E among supported devices.

Verify the exact driver, operating system, chassis and cabling before integration; historical driver support does not establish support in current releases.
