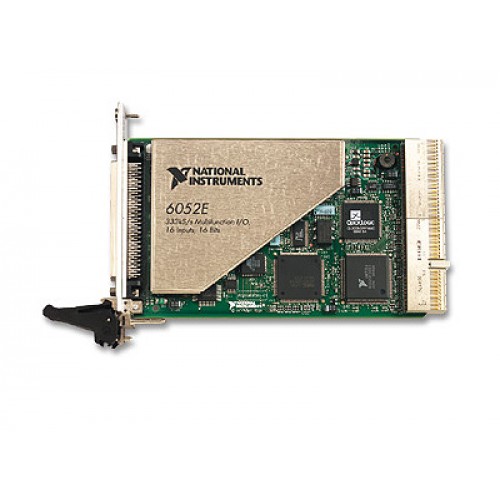

NI PXI-6052E (Legacy)

Name: NI PXI-6052E (Legacy)
Brand: National Instruments

The NI PXI-6052E is a legacy multifunction PXI data acquisition module with 16-bit analog input at up to 333 kS/s. It also provides two analog outputs, eight digital I/O lines and two counter/timers.

ManufacturerNational Instruments

ModelPXI-6052E (Legacy)

Product TypeMultifunction data acquisition module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6052E (Legacy)

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI, E Series

Analog input16 channels, 16-bit resolution

Maximum sampling rate333 kS/s

Analog output2 channels

Digital and timing I/O8 digital I/O lines; 2 counter/timers

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6052E combines analog acquisition, analog output, digital I/O and counter/timer functions in an NI E Series PXI module.

NI lists the PXI version of the 6052E in its NI-DAQmx 18.0 supported-device table. This is version-specific evidence, not confirmation of compatibility with current drivers or operating systems.

Software-selectable single-ended or differential analog input.
Two 16-bit voltage outputs.
5 V TTL/CMOS digital I/O.
Two 24-bit up/down counter/timers.

Verified specifications

Technical data

Verified product specifications.

Analog input configuration	16 single-ended or 8 differential channels
Analog input resolution	16 bits
Maximum analog input sampling rate	333 kS/s
Analog input coupling	DC
Analog output channels	2 channels
Analog output resolution	16 bits
Maximum analog output update rate	333 kS/s
Digital I/O	8 input/output lines; 5 V TTL/CMOS
Counter/timers	2 up/down counters, 24-bit resolution

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Hardware platform

E Series

DAQ family

PXI-6052E

Multifunction DAQ module

Confirm the exact chassis, cabling, driver version and operating system before integrating this legacy module.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6052E Family SpecificationsSpecifications · download.ni.com

Open →

NI-DAQmx 18.0 ReadmeDriver Support Reference · download.ni.com

Open →

6052E I/O terminals, electrical specifications and timing characteristicsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many differential analog inputs does the PXI-6052E provide?

It supports eight differential inputs or 16 single-ended inputs, with software-selectable configuration per channel.

Does the PXI-6052E include analog outputs?

Yes. It has two 16-bit voltage output channels with a maximum update rate of 333 kS/s.

Is NI-DAQmx support documented for this model?

Yes. NI-DAQmx 18.0 explicitly lists the PXI 6052E among supported E Series devices. Verify the requirements of your specific software and operating system; that historical listing does not establish current-version support.
